-50%

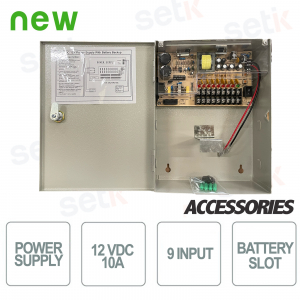

12V Power Box with 9 Outputs. Power 10A. Prepared for batteries. Quality product.
FIND INSTALLER
https://www.setik.biz/en/power-source/1057-setik-alimb10a9uba-12v-power-box-10a-9-outputs-support-for-batteries-setik.html
€48.19
€96.38 -50%
taxes included
discover the available quantity
12V Power Box with 9 Outputs - Power 10A - Setik
Power Box - SetikPower 10A - with 9 Outputs
Equipped with a slot for batteries
Product without warranty
Product Details
- 12V Power Box - Setik
- Power 10A
- Slot for Batteries (not included)
- For the proper functioning of this product, it is necessary to purchase this battery
- 1 Pack contains: 1 Power Box
- Weight: 600 grammes
- Product without warranty
- Dimensions: (W)x(D)x(H) 20,5x9x26,5cm
Data Sheet
| Model |
ALIMB10A9UBA |
| DC voltage |
12V±2% |
| Rated Current |
3A~30A |
| Efficiency |
85% min |
| Setup Rise Time |
1000MS 50MS/230VAC 1000MS 40MS/115VAC |
| Hold Time(TYP.) |
20MS/230VAC 20MS/115VAC |
| Voltage Range |
100VAC-240VAC |
| Frequency Range |
50-60HZ |
| Efficiency |
85% min |
| Leak Current |
<3.5MA/230VAC 115VAC |
| Over Load |
Rated Output Power 105-140% |
| Over Voltage |
Rated Voltage 140% |
| Short Circuit |
Load automatically after fault condition is removed to restore |
| Working Temperature |
-20°C~+65°C |
| Working Humidity |
-10%~85% RH |
| Dimensions |
(W)x(D)x(H) 20,5x9x26,5cm |
Additional Details
 |
The components which, by their nature or due to normal use, stress or decay, require periodic maintenance or replacement (eg power supplies, cables, connectors, structural components or anything that is subject to mechanical and electric stress) are specifically excluded from warranty. |
