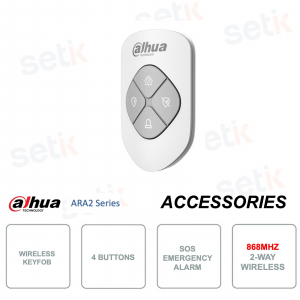

Wireless keypad - 4 buttons - 868Mhz - SOS alarm

Wireless keypad - 4 buttons - 868Mhz - SOS alarm
-35%

ARA24-W2-868 - Dahua - Wireless keyfob - Two-way communication with 868Mhz frequency - Up to 900m in open field - SOS emergency call button - Low battery alarm - Signal strength detection - AES 128 encryption - Status light - CR2032 battery - In polycarbonate and ABS - Estimated battery life 5 years.

Reference: ARA24-W2-868

Brand: Dahua

EAN: 6923172504708

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Dahua wireless alarm systems

ARA24-W2-868 | WIRELESS KEYFOB - 4 BUTTONS - SOS ALARM BUTTON - BIDIRECTIONAL WIRELESS - FREQUENCY 868MHZ

Sirena Allarme Dahua AirFly Wireless senza fili 868MHz 85dB 150 MT
Prodotto Dahua

4-BUTTON WIRELESS KEYPAD - DAHUA - ARA24-W2-868 - FREQUENCY 868MHZ BIDIRECTIONAL - SOS EMERGENCY KEY

This wireless keyfob features a two-way frequency of 868Mhz, which reaches the maximum range of 900m, in the open field. It is cloud-updatable and has a dedicated SOS emergency call button.

Total 4 buttons, dedicated to the respective Home, Away, Disarm, SOS functions.

A light indicator indicates the operating status of the device. Alarm included to indicate low batteries. Encryption : AES128 - Batteries (average estimated duration: 5 years): CR2032.


Main features:

- Dahua wireless keypad - ARA24-W2-868
- Two-way wireless communication protocol: 868MHz frequency
- Working status indicator (green for normal, red for abnormal)
- Coverage up to 900 meters in open space
- 4 buttons (Home, Away, Disarm, SOS)
- SOS emergency alarm (via dedicated button)
- Built-in tamper switch
- Power supply: CR2032 batteries
- Average battery life: 5 years
- Net weight: 20g
- Dimensions: 60.0mm × 39.5mm × 15.0mm
- Supported operating temperature: –10 °C to +55 °C
- Casing material: Polycarbonate and ABS

Product details

Data sheet

ARA24-W2-868

Technical Specifications

Port

Indicator Light

1 × two-color status indicator (green: normal, red: abnormal)

Button

4 (Home, Away, Disarm, and SOS)

Function

Remote Upgrades

Cloud update

Low Battery Alarm

Yes

Search

Signal strength detection

Wireless

Carrier Frequency

868.0MHz–868.6MHz

Communication Distance

Up to 900 m (2,952.76 ft) in an open space

Communication Mechanism

Two way

Encryption Mode

AES128

Frequency hopping

Yes

General

Power Supply

CR2032 battery

power consumption

Max. 100mW

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Product Dimensions

60.0mm × 39.5mm × 15.0mm (2.36" × 1.56" × 0.59") (L × W × H)

Packaging Dimensions

135.0mm × 98.5mm × 27.8mm (5.31" × 3.88" ×

1.09") (L×W×H)

Net Weight

20g (0.04lb)

Gross Weight

65g (0.14lb)

Certifications

THERE IS

Casing

PC + ABS

Battery Life

5 years

Further details
