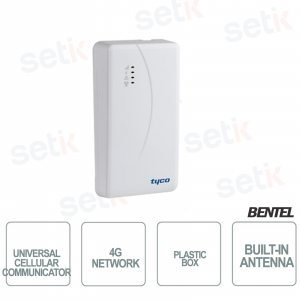

BLE-320 Universal 4G LTE and Ethernet / IP Cellular Communicator in plastic container with integrated antenna. Contact ID conversion into voice, Push & SMS messages. EN50136 certified. Remote programming with BOSS software. 6 programmable terminals (input / output). USB port for local programming. Connector for external antennas (optional), Lithium battery with 6 hours autonomy (Optional). Bentel
https://www.setik.biz/en/other-accessories/5299-bentel-security-ble-320-universal-4g-cellular-communicator-plastic-case-bentel.html
€260.24
€542.17 -52%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
UNIVERSAL BENTEL CELL COMMUNICATOR - 4G NETWORK - PLASTIC CONTAINER
Enhancing PSTN control panels with Cellular Connectivity In a market where cellular technology is increasingly present in every aspect of daily life, Bentel Security has also thought of those who still own a traditional PSTN alarm system, who would like to be in step with the times but without abandoning its security system. With the new B3G-220 universal cellular communicator, it is possible to update any PSTN control panel with the 3G network. This advantageous solution not only extends the life of the control panel, but also makes the security system innovative and more protected.
For a Simple and Innovative Alarm System:
The BLE-320 offers advanced features able to ensure a comfortable management of your home, in a simple but innovative way. In fact, with the universal cellular communicator it is possible:
- Arm and disarm your anti-theft system remotely, using a mobile device, via SMS or the user app
- Manage basic home automation functions, such as controlling lights or other utilities connected to the device
- Receive clear voice messages or sms, which report in real time the status of the system and alarm, sabotage and failure events
- Communicate via LTE and IP networks with security institutions using Sur-Gard or PowerManage receivers
Product details
- Universal Cellular Communicator - Bentel
- 4G LTE and Ethernet / IP communication channels
- Contact ID conversion into voice, Push and SMS messages
- EN50136 certified
- Integrated antenna
- Remote programming with BOSS software
- Direct communication with the supervisory centers
- 6 programmable terminals (input / output)
- USB port for local programming
- Connector for external antennas (optional)
- Lithium battery with 6 hours autonomy (optional)
Data sheet
| Model | BLE-320 |
| Properties | |
| Input voltage | 10.7 to 27.6 V_ |
| Average standby current, without battery | 90 mA (outputs not included) @ 13.8 V_ |
| Maximum current in limited mode | 230 mA (outputs not included) @ 13.8 V_ |
| Maximum current | 450 mA (outputs not included) @ 13.8 V_ |
| Go out | 6 open-collector, 100 mA |
| Operating frequency (MHz) |
GSM: 900/1800 UMTS: 900/2100 |
| Maximum line resistance on the loop between the devices connected in series LI 1 | 1 Kohm |
| Maximum number of parallel devices connected on LI 1 | 1 |
| Environmental class | II |
| Operating temperature | -10 to +40 ° C |
| Humidity | 0 to 95% |
| Dimensions (WxHxD) | 101x186x41 mm |
| Weight | 250 g |
Further details
WHO IS BENTEL?
Bentel Security represents a traditional point of reference in the SECURITY sector, of which it is the leading brand for anti-theft and fire alarm systems.
Bentel Security is one of the largest Italian companies in the field of Security and Alarm Systems. It was born in 1983 in Grottammare (AP) from an all-Italian project. In 1998 it was acquired by the Canadian group DSC and in 2001 it joined the American multinational TYCO, the largest systems integrator in the world, world leader in the security sector.
The wide range of products they have designed offer quality, reliability, high performance and an all-Italian guarantee.
