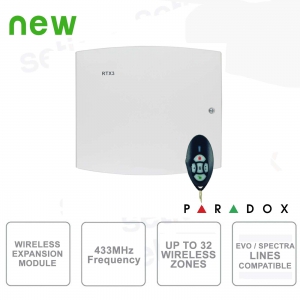

433 MHz Two-way radio receiver with REM2 remote control - Paradox

433 MHz Two-way radio receiver with REM2 remote control - Paradox
-62%

RTX3 / PXMWRT3 Paradox Two-way 433MHz radio receiver compatible with Paradox EVO and Paradox SPECTRA alarm control units. Up to 32 wireless zones, expandable range with repeaters. Conforms to EN50131 Grade 2. Includes REM2 bidirectional remote control ,



Reference: RTX3

Brand: Paradox Allarme

FIND INSTALLER

€101.76

€267.79 -62%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!





RECEIVER VIA RADIO 32 ZONES FOR ALARM CONTROL PANELS EVOHD PARADOX SPECTRA

Prodotto paradox Paradox two-way radio receiver
Up to 32 wireless zones - Compatible with SPECTRA SP and EVO control units
Expandable radio range with Paradox RPT1 repeaters - Compliant with EN50131 - Grade 2
Supplied with 1 REM2 two-way remote control

PARADOX CATALOG:

Are you looking for a PARADOX product but couldn't find it on our site?

Don't worry, we can supply you with ALL Paradox products: consult the CATALOG or contact us by email.

RTX3 | THE RADIO BIDIRECTIONAL 433MHZ RECEIVER OF PARADOX
Paradox two-way radio receiver that manages up to 32 wireless zones and 32 portable remote controls (999 portable remote controls with EVO192 control units). Supplied with 1 REM2 two-way remote control.

Ricevitore radio paradox bidirezionale 433 mhz

COMPATIBILITY OF CENTRAL PARADOX:

LINE SPECTRA SP : usable with all transmitters of the MAGELLAN series also with the bidirectional remote controls REM2 and REM3 which report the status of the system, up to 16 wireless PGM 2WPGM modules, up to 8 wireless keyboards K32RF or K32IRF and up to 2 radio repeaters RPT1.

EVO LINE : possibility of use with all transmitters of the MAGELLAN series, including the two-way REM2 and REM3 remote controls which report the status of the system, and up to 8 2WPGM wireless PGM modules.







INSIDE THE PACKAGE:
BIDIRECTIONAL REMOTE CONTROL | REM2 Two-way remote control keychain, 5 backlit activation buttons, 6 channels. Waterproof Allows you to know the status of the system with acoustic and visual confirmation on the remote control itself.Supplied with 1 3V 2032 lithium battery.

Ricevitore radio bidirezionale 433mhz

BIDIRECTIONAL RADIO RECEIVER - RTX3 / PXMWRT3 - PARADOX

- Compatible with EVO and SPECTRA SP series control units

- 3 programmable outputs including 1 relay (5A)
- Programming of the transmitters through self-learning
- Firmware upgradeable locally via 307USB interface and WinLoad software
- Supervision of transmitters, low battery signaling and tampering
- Display of radio signal strength of transmitters
- Analysis and visualization of the level of radio disturbances
- Up to 2 RPT1 repeaters can be used to increase the range of RTX3 and RTX3 / 86 radio receivers
- Conforms to EN50131 Grade 2

- GSM (with GPRS14 module)

- Conforms to EN50131 Grade 2

- Silver color

Data sheet

item RTX3
Compatibility

All Magellan wireless transmitters Digiplex EVO (EVO48, EVO96 and EVO192) Digiplex (DGP-848 and DGP-NE96) Spectra SP (SP5500, SP6000 and SP7000) Esprit (728ULT and 738ULT)

Frequency 433MHz or 868MHz (RTX3 / 86)
Sensitivity -120 dBm
Current consumption 50 mA
Dimensions (no antenna) 15cm x 16cm x 3cm (6in x 6.5in x 1.1in)
Dimensions 0 ° C to 49 ° C (32 ° F to 120 ° F)
Operating temperature: 0.49 lbs (0.22 kg)
PGM outputs: PGM1 and PGM2 - 150mA PGM transistor outputs PGM3 - form C relay output rated at 5A / 28Vdc, NO / NC (PGM4 optional)
Range Refer to the appropriate transmitter Instructions
Other Di-pole antenna; Error Correction Algorithm

More details

COMPARATIVE TABLE RTX3:

Download

WHO AND PARADOX?

Official CATALOG | INSTRUCTIONS



The story of Paradox began in 1989 with the launch on the market of an extraordinary product line, the first motion detectors whose patents are still used today. In 1996 they introduced the Digiplex series of security systems, with the expandable encrypted bus system . In 2001, they dedicated themselves to the world of wireless wireless radio products, including Magellan's award - winning all-in-one console . In the last few years also in the development of software, in 2007, they renewed and moved many of their products onto new platforms, and introduced advanced communication modules that exploit GSM and IP. Following the great success, they reintroduce Elegance , a wonderfully designed motion detector born for the first time 20 years ago.
