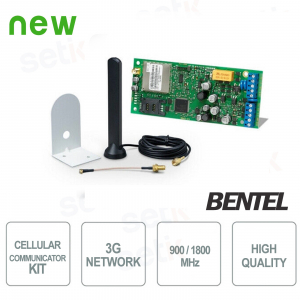

B3G-220K / EU is a kit that includes: Universal Cellular Communicator 3G 900/1800 MHz + antenna with 2 m cable, adapter and metal bracket. Bentel kit
FIND INSTALLER
€216.18
€450.38 -52%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
UNIVERSAL KIT COMMUNICATOR - BENTEL SECURITY
Enhancing PSTN power plants with Cellular Connectivity In a market where cellular technology is increasingly present in every aspect of daily life, Bentel Security has also thought of those who still have a traditional PSTN alarm system, who would like to keep pace with the times but without abandoning its security system. With the new B3G-220 universal cellular communicator, it is possible to upgrade any PSTN control panel with the 3G network. This advantageous solution not only extends the life of the plant, but also makes the security system innovative and more protected.
For a Simple and Innovative Alarm System:
The B3G-220 / EU offers advanced features that can ensure a comfortable home management, in a simple but innovative way. With the universal cellular communicator it is, in fact, possible:
- Insert and disarm your anti-theft system using a mobile device
- Manage basic home automation functions, such as the control of lights or other utilities connected to the device
- Receive clear voice messages or text messages, which signal the system status and alarm, sabotage and fault events in real time. This is possible through the innovative decoding function of the "Contact ID" and SIA codes coming from any alarm control panel
- Communicate through the 3G network with surveillance institutions that use Sur-Gard receivers or other receivers
Extend the life of your plant by reducing costs:
The B3G-220 / EU offers its customers the opportunity to improve and increase their safety while avoiding the purchase of a new burglar alarm unit.
• Makes the system innovative and offers greater protection without spending more
• Allows you to continue using your PSTN central
Product details
- Universal 3G communicator in kit: board and antenna
- Kit includes: 900/1800 MHz 3G communicator board , antenna with 2 m cable , adapter and metal bracket .
- B3G-220 / EU COMMUNICATOR:
- Fixed telephone line simulated
- 6 programmable terminals as inputs or outputs
- It supports the ID communication format from a central for communication on the GPRS network
- GPRS / internet communication with SUR-Gard System I-IP / II / III / 5 receivers
- Up to 32 numbers (max 16 characters) programmable for remote activation of the outputs
- Remote activation of the outputs through the identification of the caller and / or SMS
- Transmission of alarm events on GSM / GPRS / HSPA networks
- Anti-jamming
Data sheet
| Model | B3G-220K / EU |
| Properties | |
| Input voltage | 10.7 to 27.6 V_ |
| Average standby power, without battery | 90 mA (outputs not included) @ 13.8 V_ |
| Maximum current in limited mode | 230 mA (outputs not included) @ 13.8 V_ |
| Maximum current | 450 mA (outputs not included) @ 13.8 V_ |
| Outputs | 6 open-collector, 100 mA |
| Operating frequency (MHz) |
GSM: 900/1800 |
| Maximum line resistance on the loop between the devices connected in series LI 1 | 1 Kohm |
| Maximum number of parallel devices connected on LI 1 | 1 |
| Environmental class | II |
| Operating temperature | -10 to +40 ° C |
| Humidity | 0 to 95% |
| Dimensions (WxHxD) | 76x151x20 mm (PCB only) |
| Weight | 66 g |
More details
WHO IS BENTEL?
Bentel Security represents a traditional point of reference in the SAFETY sector, of which it is the leading brand for burglar and fire alarm systems.
Bentel Security is one of the largest Italian companies in the field of Security and Alarm Systems. It was born in 1983 in Grottammare (AP) from an all-Italian project. In 1998 it was acquired by the Canadian group DSC and in 2001 it became part of the American multinational TYCO, the largest system integrator in the world, world leader in the security sector.
The vast range of products they have designed offer quality, reliability, high performance and an all-Italian guarantee.
