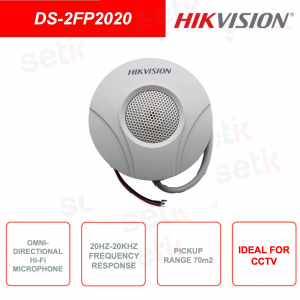

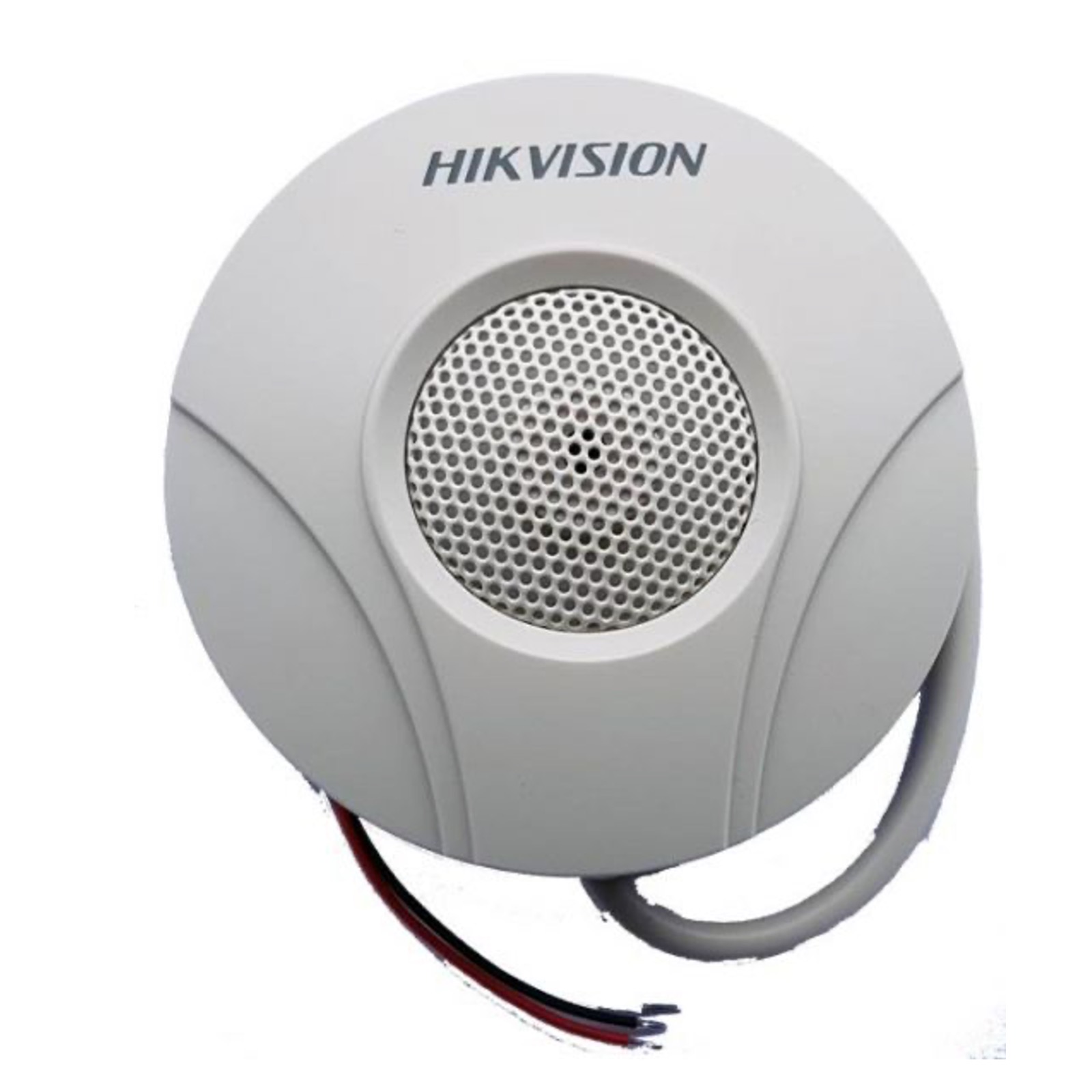

Hikvision DS-2FP2020 - Omni-directional microphone - For video surveillance - Detection range up to 70m2 - Frequency response 20Hz-20Khz - Audio transmission up to 3.000m - SNR 60dB - PVC case.
FIND INSTALLER
€77.71
€119.56 -35%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
Description Product Details Data Sheet Further Details Download
DS-2FP2020 | OMNI-DIRECTIONAL MICROPHONE - FOR VIDEO SURVEILLANCE - HIGH SENSITIVITY - 20HZ-20KHZ - DETECTION UP TO 70M2
Ideal for use in video surveillance systems - RoHS compliant - Omnidirectional acquisition with range up to 70m2 - Frequency response 20Hz-20Khz - Maximum sound pressure 100dB - SNR: 60dB - Dynamic range: 70dB - ANC for ambient noise cancellation - 3-connection wires (power-audio out-GND) - Lightning protection, electrostatic, Reverse Polarity - Audio transmission up to 3.000m.
Product features: DS-2FP2020
- Omni-directional microphone - HIKVISION - DS-2FP2020
- Frequency response 20Hz - 2kHz
- Sensitivity -34dB
- Maximum sound pressure: 100dB
- Output Impedance: 600 ohms unbalanced
- Detection range: 70m2
- Audio transmission: up to 3,000m
- SNR: 60dB
- Frequency response 20hz-20Khz
- Microphone Type: Diaphragmatic Condenser
- 3-wire wiring: power supply - audio out - GND
- Shell in PVC
- Power Supply: 12VDC (9V to 15V)
- Item net weight: 60g
- Dimensions: Φ78mm x 28mm
- Operating temperature: -25°C to 70°C
Data sheet
| DS- 2FP 2020 | |
| Parameters | |
Pickup Range | 70 m2 |
Audio Transmission Distance | 3000m |
Sensitivity | -34dB |
Frequency Response | 20Hz to 20kHz |
Directivity Characteristics | omnidirectional |
SNR | 60dB (1m 40dB audio tone SPL), 40dB (10m 40dB audio tone SPL), 1kHz at 1Pa |
dynamic range | 70dB (1kHz at Max dB SPL) |
maximum sound pressure | 100dB SPL (1kHz, 1% THD) |
Output Impedance | 600 ohms unbalanced |
Output Signal Amplitude | 2.5Vpp/-25dB |
Microphones | Capacitor microphone diaphragm |
Signal Processing Circuit | ANC ambient noise cancellation technology |
protective circuit | 30KV Air contact ESD, lightning protection, reverse polarity protection |
Drive Capabilities | Built-in preamplifier circuit can directly drive headphones |
Connection Mode | 3 wires (power, audio out, GND) |
Transmission Cable | 3-core shielded cable 0.5 mm 2 RVVP |
Supply Voltage | 12VDC (9V to 15V) |
Supply Current | Maximum 25mA |
Working Temperature | -13°F to 158°F (-25°C to 70°C) |
InstallationMode | Fixed pedestal mounting |
Color | White/blue |
Shell material | PVC |
ExternalSize | Φ3.1" x 0.08" (Φ78mm x 28mm) |
Weight | 0.13lbs (60g) |
