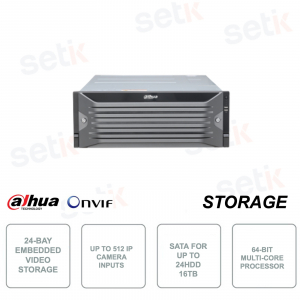

VIDEO STORAGE 24 ROOMS - 512IP INPUT CHANNELS - ONVIF® - 1024MBPS BAND - DAHUA - EVS7124S

Prodotto marca Dahua Dahua - EVS7124S - 24-bay video storage
Integrated video storage - x24 bays - ONVIF® - 512 IP In channels - 1024Mbps bandwidth - Multi-Core 64 bit processor - Hot swappable - ANR support - 1+1 redundant power supply - RAID 0/1/5/6/10/50/ 60, JBOD, 1 Gigabit port for management, 4 Gigabit LAN ports - 1 eSATA port - 1 RS232 (DB9) port - 2 mini SAS ports up to 12 Gbps - 1 HDMI port - Supports up to 24 HDDs up to 16 TB - Video search in 1s - Backup via USB, network and eSATA - Standard 19-inch rack installation.

Product details



Data sheet

EVS7124S

System

Main Processor

64-bit multi-core processor

Operating System

Embedded Linux

Operation Interface

Web

Controllers

Single controllers

RAM

8GB by default (extendable to 64GB)

Power Redundancy

1+1

External Ports

SAS

2 mini SAS HD ports with maximum speed 12Gb/s

Network

1 × 1GbE management port; 4 × 1GbE LAN ports

Network Extension

4 × 1-GbE LAN ports and 2 × 10-GbE optical fiber ports are optional

eSATA

1× eSATA

RS-232

1 × DB9

HDMI

1×HDMI

Internal Expansion

M.2 SSDs

2 × NVMe SSD ports

PCI-E

1 × PCI-E X8; 1×PCI-E X4

Disk

1 × 2.5inch SATA

Disk

Disk Bay

24

DiskType

1TB; 2TB; 3TB; 4TB; 5TB; 6TB; 8TB; 10TB; 12TB; 14TB; 16TB;

2.5-inch and 3.5-inch HDDs

Support simultaneously connecting to SATA/SAS

Disk Installation

Independent disk tray

Hot swapping

Support

RAIDType

RAID0, 1, 5, 6, 10, 50, 60, JBOD, Hot Spare

Disk Processing

Dad sector mapping

Disk Management

Non-working disks automatic sleep

Disk Inspection

Inspection before use and during use

29kg (63.93lbs)

Gross Weight

44kg (97lbs)

Installation

Standard 19 inch racks
