DS-K4H450S | HIKVISION | Electromagnetic latch - Static linear thrust 500Kg - LED indicator of closing status - For wooden, glass, metal or fireproof doors - Power supply: 12VDC or 24VDC + 10% - LED indicator of correct closing of the door - Weight 4.5Kg.
FIND INSTALLER
€318.79
€490.44 -35%

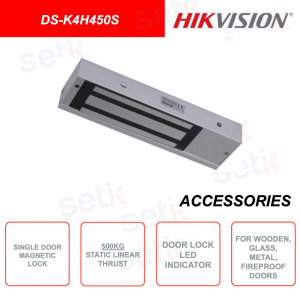

DS-K4H450S - ELECTROMAGNETIC LOCK FOR SINGLE DOOR - STATIC LINEAR THRUST 500KG - HIKVISION
Data sheet
|
Model |
DS-K4H450S |
|

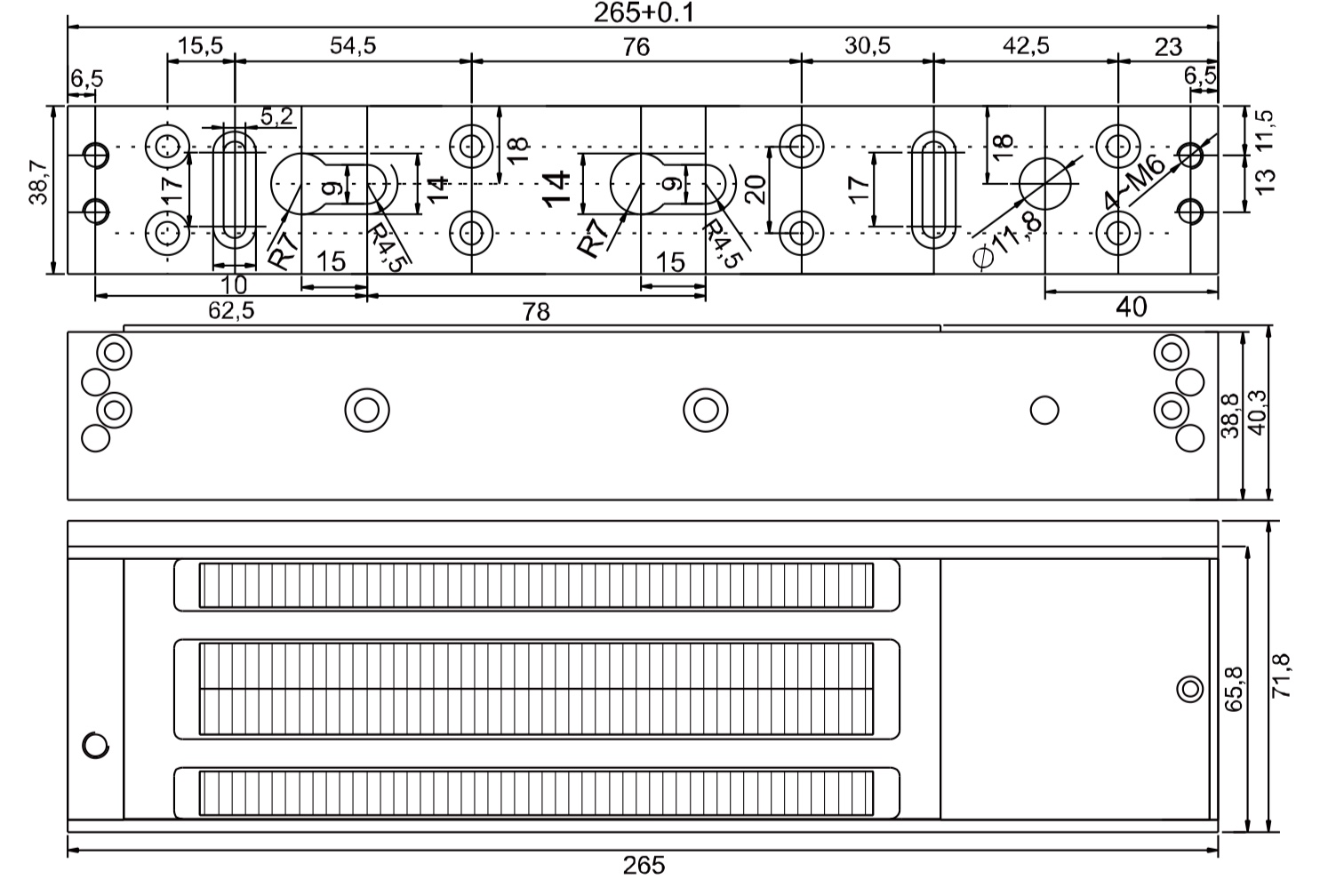

Dimension of Lock Body (L × W × H) |
265 mm × 71.8 mm × 38.8 mm (10.43 "× 2.83" × 1.53 ") |
|
Dimension of Armature Plate (L × W × H) |
185 mm × 60 mm × 13 mm (7.28 "× 2.36" × 0.51 ") |
|
Maximum Thrust |
500 kg (1200 Lbs) |
|
Input Voltage |
12/24 VDC + 10% |
|
Working Current |
12 V / 420 mA 24 V / 210 mA |
|
Signal Output |
Dry Contact Signal Output; Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
|
LED Indicator |
Green (Locked) Red (Unlocked) |
|
Suitable Door |
Wooden Door, Glass Door, Metal Door, Fireproof Door |
|
Weight |
4.5 kg |
