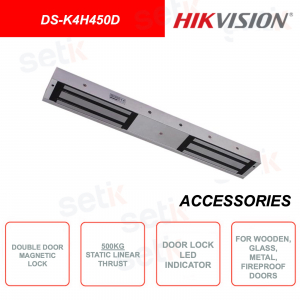

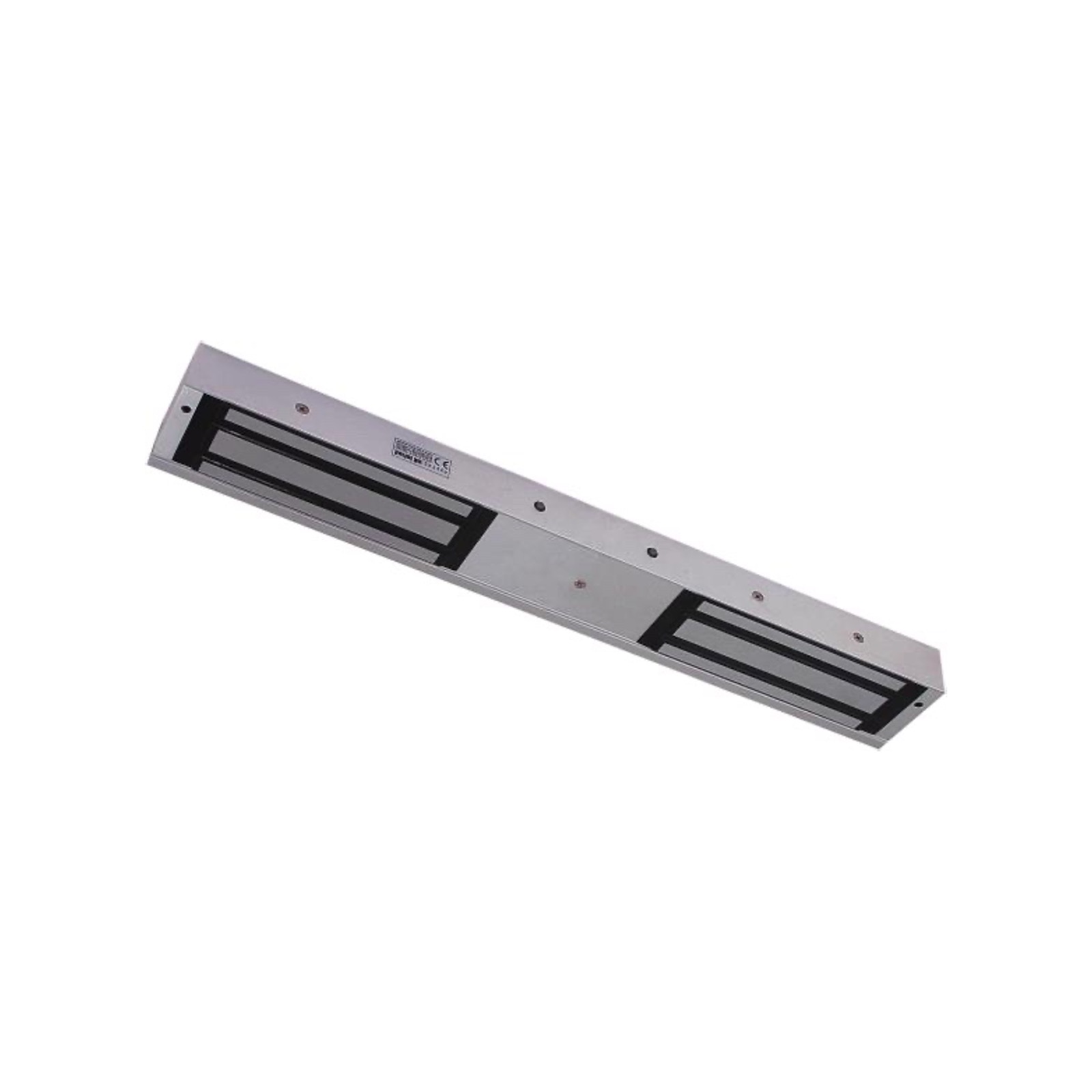

DS-K4H450D | HIKVISION | Electromagnetic latch - For double door - Static linear thrust 1000Kg (2x500Kg) - LED indicator of closing status - For wooden, glass, metal or fireproof doors - Power supply: 12VDC or 24VDC + 10% - LED indicator of correct closing of the door - Weight 9Kg.
FIND INSTALLER
€637.57
€980.88 -35%
DS-K4H450D - ELECTROMAGNETIC LOCK FOR DOUBLE DOOR - STATIC LINEAR THRUST 1000KG (2x500KG) - HIKVISION
Data sheet
Model | DS-K4H450D |

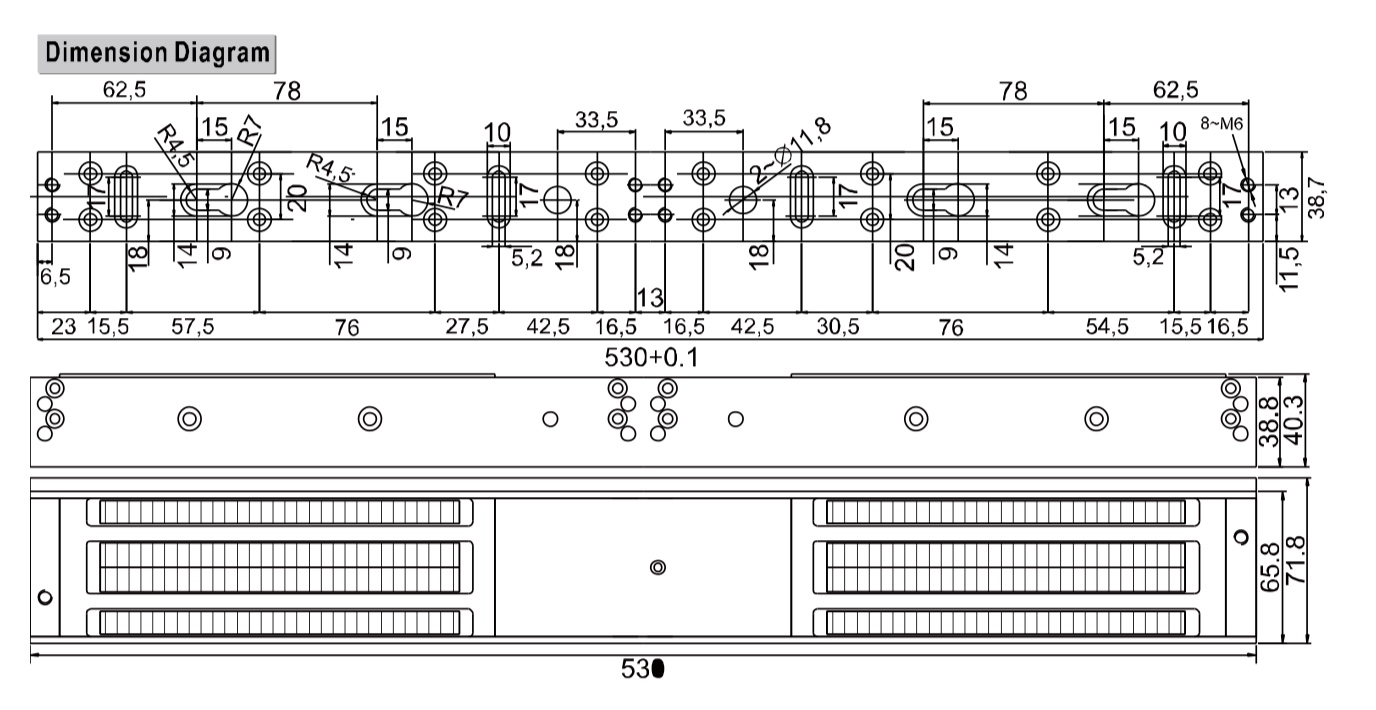

Dimension of Lock Body (L × W × H) | 530 mm × 71.8 mm × 38.8 mm (20.87 "× 2.83" × 1.53 ") |
Dimension of Armature Plate (L × W × H) | 185 mm × 60 mm × 13 mm (7.28 "× 2.36" × 0.51 ") |
Maximum Thrust | 500 kg (1200 Lbs) × 2 |
Input Voltage | 12/24 VDC + 10% |
Working Current | 12V / 420mA × 2 24V / 210mA × 2 |
Signal Output | Dry Contact Signal Output; Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
LED Indicator | Green (Locked) Red (Unlocked) |
Suitable Door | Wooden Door, Glass Door, Metal Door, Fireproof Door |
Weight | 9.0 kg |
