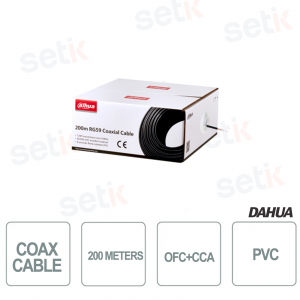

Bundle of Dahua Coaxial RG59 L200m cable, OFCM signal conductor, PVC sheath
PFM930-59N
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
HANK OF CABLE 200 METERS - DAHUA

Quality product
Product details
- Bundle of UTP cable - Dahua
- 200 meters
- PVC
- Product excluded from warranty

Data sheet
Model | PFM930-59N |
Conductor | |
Material | OFC (oxygen free copper) |
Wire gauge | 20AWG (0.8mm) (0.031 ") |
Insulation | |
Material | FPE |
Diameter | 3.7mm ± 0.05mm (0.15 "± 0.002") |
Tape | |
Material | Aluminum foil |
thickness | 0.04mm (0.0016 ") |
Braid | |
Braiding material | Copper clad aluminum |
Braiding structure | 0.12mm (0.0047 ") * 64 (16 * 4) |
Jacket | |
Material | PVC |
Min. Average thickness | 0.9mm (0.035 ") |
Diameter | 6.1mm ± 0.2mm (0.24 "± 0.008") |
Color | Black |
General | |
Working temperature | -20 ℃ ~ + 70 ℃ (-4 ℉ ~ + 158 ℉ |
Storage temperatures | -40 ℃ ~ + 80 ℃ (-40 ℉ ~ + 176 ℉) |
Weight | 6.7kg (14.77lb) |
Weight (with packaging) | 7.2kg (15.87lb) |
Packaging dimension | 321mm * 321mm * 143mm (12.64 "x12.64" x5.63 ") |
Protective housing dimension | 662mm * 337mm * 467mm (26.06 "x13.27" x18.39 ") |
Length | 200m (656.17ft) |
Mark spacing | 1m (3.38ft) |
Impedance | 75Ω ± 2Ω |
Further details
![]() | Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
