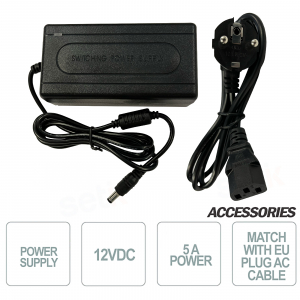

ALIM5AEU Setik 12V 5A 60W power supply with single connector for powering high performance CCTV video surveillance camera or DVR / NVR security recorders. Aesthetics may vary depending on the supplies
Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!
[short_description] =>
Setik was founded in 2012. Initially 10 products in the catalogue, today almost 4,000.
12V 5A 60W POWER SUPPLY WITH SINGLE CONNECTOR FOR HIGH PERFORMANCE CAMERAS AND RECORDERS DVR NVR CCTV SURVEILLANCE
12V 5A 60W power supply Suitable for powering a single high-performance camera or DVR NVR security recorders European Attack - Aesthetics may vary depending on supplies
Product details
12V 5A 60W power supply
Useful for powering high performance CCTV surveillance cameras or NVR DVR security recorders
Single connector
Short circuit / overload / over voltage / overheat protection
Input voltage range: 85 ~ 264V AC
Integrated EMI filter with small ripple
100% full load burn-in test
Product excluded from warranty
Size: 70 * 39 * 31mm (L * W * H)
Aesthetics may vary depending on the supplies
(Aesthetics may vary depending on supplies)
Data sheet
Model
ALIM5AEU
Features
DC output voltage
12V ± 1%
Output Current Range
0-5A
Wave and Noise
120mVp-p
DC output Power
60W
Efficiency
85%
DC Voltage Adjustable Scope
(at full load) ≦ 0.5%
Voltage Range
85 ~ 264VAC 47-63Hz
Input Current
0.14A / 115V, 0.07A / 230V
Leakage Current
<1mA / 240VAC
Inrush Current
Cold start 20A / 120VAC, 40A / 230VAC
Over-load
105% ~ 135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over-voltage
105% --- 150% Rated Voltage, Protection type: Shut off
High-temperature
RTH3> = 65 ° C FAN ON <= 55 ° C FAN OFF> = 80 ° C Cut off output (5 ~ 15V)
Working temperature and humidity
-10 ° C ~ + 50 ° C, 20 ~ 90% RH
Store temperature and humidity
-20 ° C ~ + 85 ° C, 10 ~ 95% RH
Temperature coefficient
± 0.03% ° C (0 ~ 50 ° C)
Vibration
10 ~ 500Hz, 2G 10min./1cycle,Period for 60min, EACH AXES
Withstand voltage
I / PO / P: 1.5KVAC, I / P-FG: 1.5KVAC, O / P-FG: 0.5KVAC
Isolation resistance
I / PO / P, I / P-FG, O / P-FG: 100M Ohms / 500VDC
Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.
