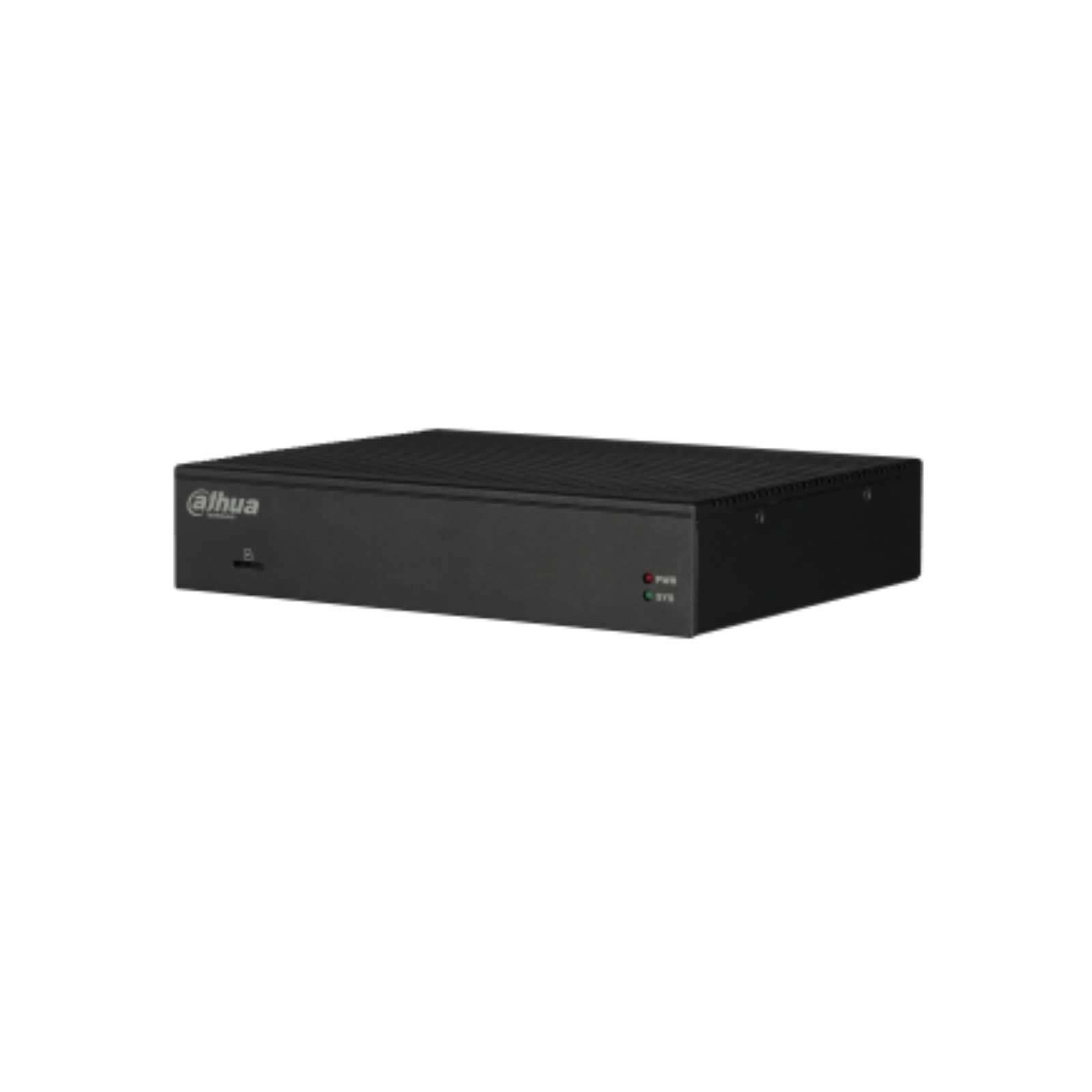

NETWORK MANAGEMENT PLATFORM 2 ETHERNET PORTS (10/100) + 4 USB + 1 HDMI PORT + 1 VGA PORT - ALAME MESSAGES - DAHUA
Dahua's ILS1000 is a Network Management Platform that allows real-time control of the security system information. Incorporates Ethernet port (RJ45 10/100 / Mbps ) + 4USB + 1 HDMI port + 1 VGA port . It has 2GB of memory, supports up to 10,000 ports and 1,000 switches. Perfect for security systems found in supermarkets, hotels, schools, airports, etc. Complete with alarm messages , it supports HTTPS, HTTP and PoE
Product details
- Network Management Platform DAHUA
- 2 Ethernet ports (RJ45 10/100 / Mbps ) + 4USB + 1 HDMI port + 1 VGA port
- Ideal for monitoring in contexts and scenarios such as schools, offices, hotels, hospitals, supermarkets.
- Suitable in extreme temperatures (-10 ° to 55 °)
- It supports HTTPS, HTTP and PoE
- Dimensions: 155mm × 135mm × 30mm (6.10 "× 5.31" × 1.18 ")
Data sheet
| Model | ILS1000 |
| Intelligent Analysis | |
| Switch Statistics | Switch online / offline statistics |
| IP Device Statistics | IP device online / offline statistics |
| Port Usage | Usage statistics of switch ports |
| CPU Usages | Display the top 9 switches with most CPU usages |
| Total bandwidth of port | Total bandwidth statistics of port |
| Alarm Statistics | IP conflict alarm, switch status alarm, terminal status alarm, loopback alarm, port congestion alarm |
| Dynamic View | |
| Device Discovery | Dahua managed switches Dahua terminal devices, such as IPC, NVR SNMP switches |
| Network Topology | Display managed switches Display unmanaged switches Display IP devices Display network link status |
| Networking Mode | Support discovery and identification of cascading, star, aggregation and other networking; |
| Network Device | |
| Switch | Display the detailed information of switches, such as name, mode, SN, IP, MAC and status. |
| Terminal Device | Display the detailed information of IPCs, NVRs and other devices, such as name, type, mode, IP, MAC, manufacturer and status. |
| PoE Management | Display the power consumption of switches, including total and used power consumption. And remotely control the PoE switch. |
| Alarm Message | |
| Alarm Message | Support IP conflict alarm, switch status alarm, terminal status alarm, loopback alarm, port congestion alarm |
| System Management | |
| Maintenance | One click to reset Support upload of upgrade package Support import and export of configuration file Support system log |
| Web Management | Support HTTPS and HTTP login |
| Performance | |
| Supported device | 1000 switches 10,000 ports |
| Power Consumption | 15W |
| Memory | 2 GB |
| Ethernet port | 2 × 10/100/1000 M RJ-45 ports |
| Indicator | PWR indicator and SYS indicator |
| Operating Temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Operating Humidity | 5% –95% |

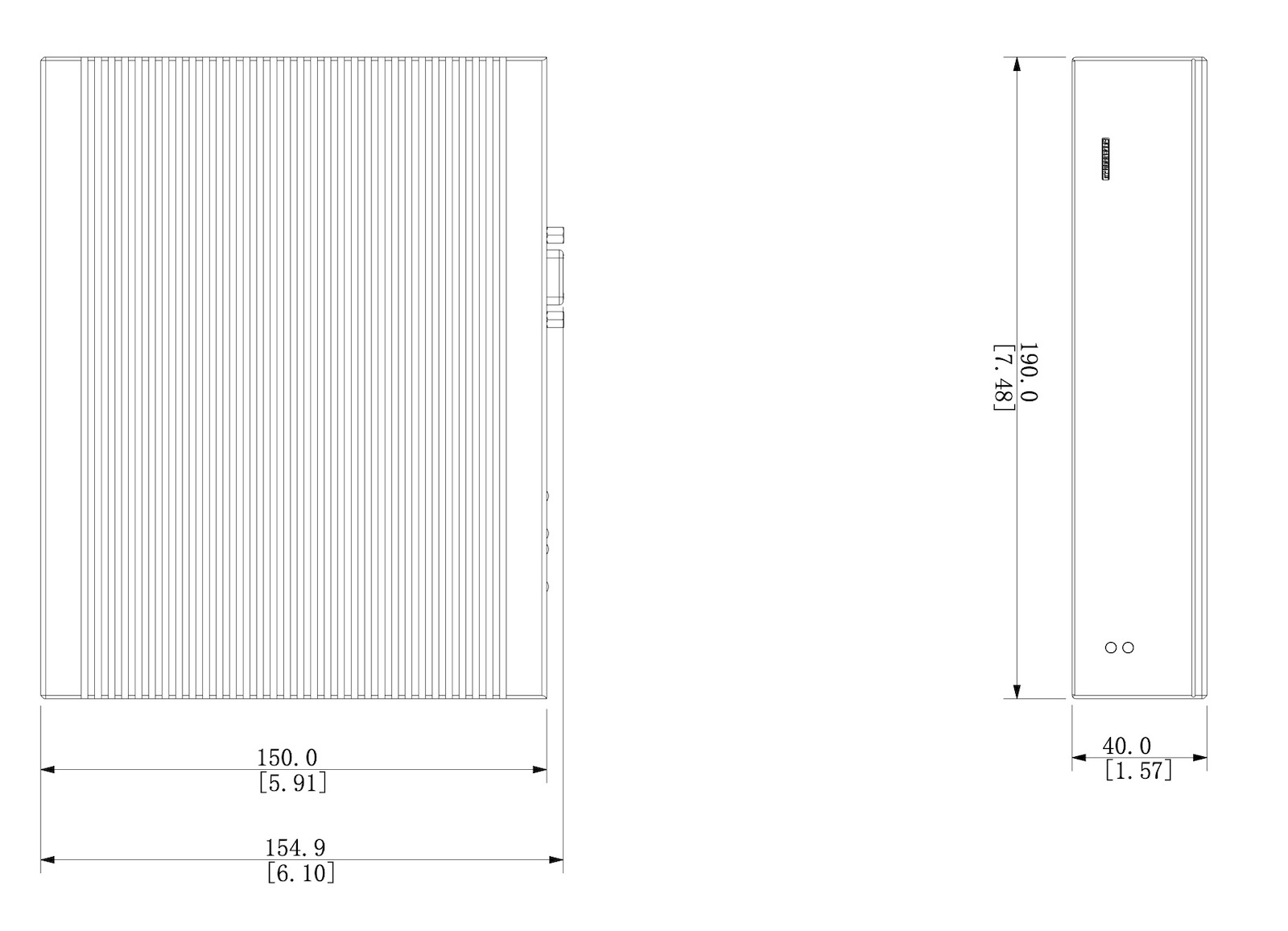

| Dimensions (L × W × H) | 155 mm × 135 mm × 30 mm (6.10 "× 5.31" × 1.18 ") |
| Weight | 1.6 kg (3.53 lb) |
Further details
Download
Download the brochure in English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
