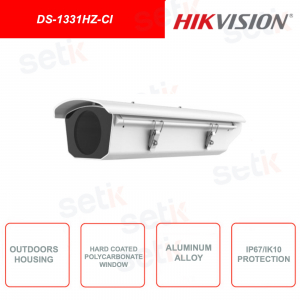

Hikvision housing for outdoor use, in aluminum alloy, ideal for video surveillance cameras DS-1331HZ-CI
Aluminum alloy housing , ideal for use in outdoor video surveillance systems, with tempered polycarbonate lens protection - IP67 protection against water and dust splashes - IK10 level impact protection, ideal for preventing vandalism - With integrated cooling fan to guarantee optimal operation.
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
DS-1331HZ-CI | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE, WITH IP67 AND IK10 PROTECTION - WINDOW PROTECTION IN REINFORCED POLYCARBONATE
Design with integrated cooling fan - Temperature control system during operation, to ensure the correct operation of the device against excessive overheating - Protection of IP67 level from water and dust splashes - Impact resistance of IK10 level, ideal against vandalism - Reinforced polycarbonate image capture area protection - Side cover design designed to facilitate the installation and subsequent maintenance process of the installed camera - Dimensions: 455.3 × 169.2 × 110 - Weight: 1900g - Power supply: DC12V - Ideal for use in outdoor video surveillance systems - HIKVISION - DS-1331HZ-CI
Characteristics:
- Side cover design designed to facilitate installation and maintenance of the equipment
- Double hinge in stainless steel, and ingress protection up to IP67 from splashes of water and dust
- Tempered polycarbonate coating to protect image capture
- Internally mounted cooling fan
- Temperature control system to prevent camera overheating and ensure proper operation
- IK10 level protection, ideal against vandalism
Note:
- Read carefully and follow the instructions supplied before installing the appliance
- Switch off the device before cleaning
- Do not use spray or liquid cleaning agents
- Do not install on insufficiently stable substrates
- Always protect the power supply unit
Data sheet
| DS-1331HZ-CI | |
| Parameters | Outdoor Housing |
| Product Features | Contain fan, suitable for high temperature environment |
| Working Temperature | -20? ~ +60 ?, Humidity 95% or less (non-condensing) |
| Automatic Temperature Control Range | Without heating Fan on: 45 ° ± 5? Fan off: 35 ° ± 5? |
| Power Supply | 12 VDC |
| Power Consumption | Fan: 4W |
| Protection Level | IP67 |
| Image Protection | IK10 |
| Material | Main: aluminum alloy |
| Dimension | 455.3 × 169.2 × 110mm |
| Matching Power Supply | DC12V 2A Power pack |
| Weight | 1900g |
