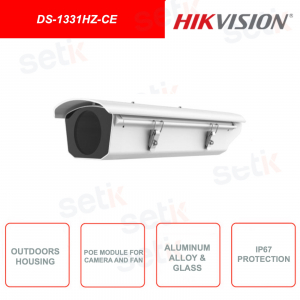

Hikvision housing for outdoor use, in aluminum alloy, ideal for video surveillance cameras DS-1331HZ-CE
Made of aluminum alloy, ideal for use in outdoor video surveillance systems, with IP67 protection from water splashes and dust - The design of the device integrates the appropriate cooling fan to ensure optimal operation - PoE Standard 802.3at for camera and fan - Partial glass cover to protect image capture - HIKVISION - DS-1331HZ-CE
FIND INSTALLER
€171.41
€342.82 -50%Description Product Details Data Sheet Further Details Download
DS-1331HZ-CE | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE - IP67 - PoE (POWER OVER ETHERNET)
Characteristics:
- Side panel design conceived to facilitate the installation and maintenance of the luminaire
- Body with double hinge in stainless steel, and ingress protection up to IP67 from splashes of water and dust
- Integrated cooling fan
- PoE power module for supplying power to the camera and fan
Attention:
- Read and carefully observe all the instructions before proceeding with the installation of the product
- Turn off the power of the device before cleaning, and do not use liquid or aerosol cleaners
- Do not install on unstable substrates
- Protect the power supply line, especially the flexible wire of the power plug
Data sheet
| DS-1331HZ-CE | |
| Parameters | Outdoor Housing |
| Product Features | Contain fan, suitable for high temperature environment |
| Working Temperature | -20? ~ +60 ?, Humidity 95% or less (non-condensing) |
| Automatic Temperature Control range | Without heating Fan on: 45 ° ± 5? Fan off: 35 ° ± 5? |
| Power | DC12V & POE (802.3at) |
| Power Consumption | Fan: 4W |
| Protection Level | IP67 |
| Material | Main : aluminum alloy |
| Matching power supply | DC12V & POE (802.3at) |
| Dimension | 455.3 × 169.2 × 110 |
| Weight | 1900g |
Further details
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount
