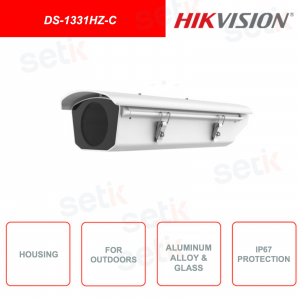

DS-1331HZ-C - Hikvision - Housing for video surveillance cameras for outdoor use in aluminum alloy

DS-1331HZ-C - Hikvision - Housing for video surveillance cameras for outdoor use in aluminum alloy
-50%

Hikvision housing for outdoor use, in aluminum alloy, ideal for video surveillance cameras DS-1331HZ-C

Aluminum alloy housing , ideal for use in outdoor video surveillance systems.

Internally mounted cooling fan to ensure optimum operation of the appliance, ideal in high temperature environments.



Reference: DS-1331HZ-C

Brand: Hikvision

FIND INSTALLER

€140.30

€280.60 -50%
taxes included
Tax included
 Available in 5 days



Made by Hikvision

DS-1331HZ-C | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE

Housing for video surveillance cameras, made of aluminum alloy, ideal for setting up outdoor systems - The design mounts a double hinge, in resistant stainless steel, with IP67 protection level from splashes and dust - The design of the side cladding is designed to facilitate maintenance and correct installation - The product mounts the cooling fan internally, to guarantee optimal operation, especially when the device is used in high temperature environments - It has a partial tempered glass coating, to guarantee correct image acquisition - Dimensions:
455.3 × 169.2 × 110 - Weight: 1,9Kg - Power supply: DC12V 2A Power pack - Fan consumption: 4W
DS-1331HZ-CZ

Features:
- Side trim design for ease of installation and maintenance
- Stainless steel double hinge design, ingress protection up to IP67 from dust and water splashes
- Partial glass coating of the lens to protect image acquisition
- Internal temperature control system, to ensure the correct functioning of the device
- Internally mounted cooling fan, to operate in high temperature ambient conditions.

Note:
- Read carefully and follow the instructions and warnings before installing the product
- Turn off the power before cleaning, and do not use liquid or aerosol cleaning substances
- Do not install on unstable substrates
- Protect the power supply line, especially the connection line and the chamber.

Data sheet

DS-1331HZ-C
Parameters Outdoor Housing
Working Temperature -20? ~ +60 ?, Humidity 95% or less (non-condensing)
Automatic temperature control range

Without heating

Fan on: 45 ° ± 5?

Fan off: 35 ° ± 5?

Power Supply 12 VDC
Power Consumption Fan: 4W
Protection Level IP67
Material Main Body: Aluminum Alloy
Window: glass
Dimension 455.3 × 169.2 × 110
Matching power supply DC12V 2A Power pack
Weight 1900g

Further details

Compatible with models:
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount

Download

Download the English brochure
