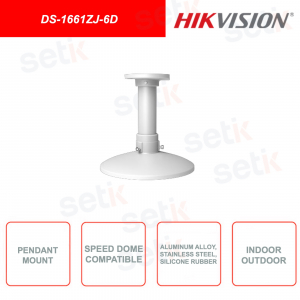

Pendant mount for ceiling mounting of Hikvision DS-1661ZJ-6D Speed Dome cameras
Pendant mount, for ceiling mounting, ideal for Speed Dome type video surveillance cameras, manufactured in aluminum alloy and stainless steel with silicone rubber, Hikvision White appearance, max. guaranteed up to 10Kg, easy to install and ideal for use indoors and outdoors to set up video surveillance systems.
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
DS-1661ZJ-6D | CEILING PENDANT SUPPORT, FOR SPEED DOME CAMERAS IN ALUMINUM ALLOY AND STAINLESS STEEL - HIKVISION
Characteristics:
- Aluminum alloy, with surface spray treatment
- Easy installation
- Waterproof design with special waterproofing rubber gasket
Note:
- Install the product on flat surfaces
- The special waterproof waterproof rubber is necessary to use the product in an outdoor environment
- Make sure the load capacity of the wall is equal to at least 3 times the weight of the installed camera and support
- Maximum guaranteed load capacity: 10KG
Data sheet
|
Model Parameters |
DS-1661ZJ-6D |
|
Pendant Mount |
|
|
Appearance |
Hikvision White |
|
Application |
For indoor and outdoor installation |
|
Material |
Aluminum alloy, stainless steel, and silicone rubber |
|
Angle Adjustment |
Pan: 0 ° to 350 ° |
|
Dimension |
Φ 250 mm × 247 mm (Φ 9.84 "× 9.72") |
|
Weight |
Approx. 1338 g (2.95 lb.) |
