Support - Terminal Box - Explosion Proof - HIKVISION DS-2781ZJ-X
Product manufactured in 304 stainless steel. Ingress protection with IP68 level standards - Explosion proof, ATEX and IECEx certified - Design with 4 outputs for wiring - Ideal for security systems requiring the highest degree of safety - Product High quality - Pre-installed power adapter design.
FIND INSTALLER
€1,107.15
€2,214.30 -50%Description Product Details Data Sheet Further Details Download

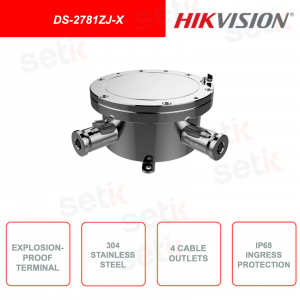

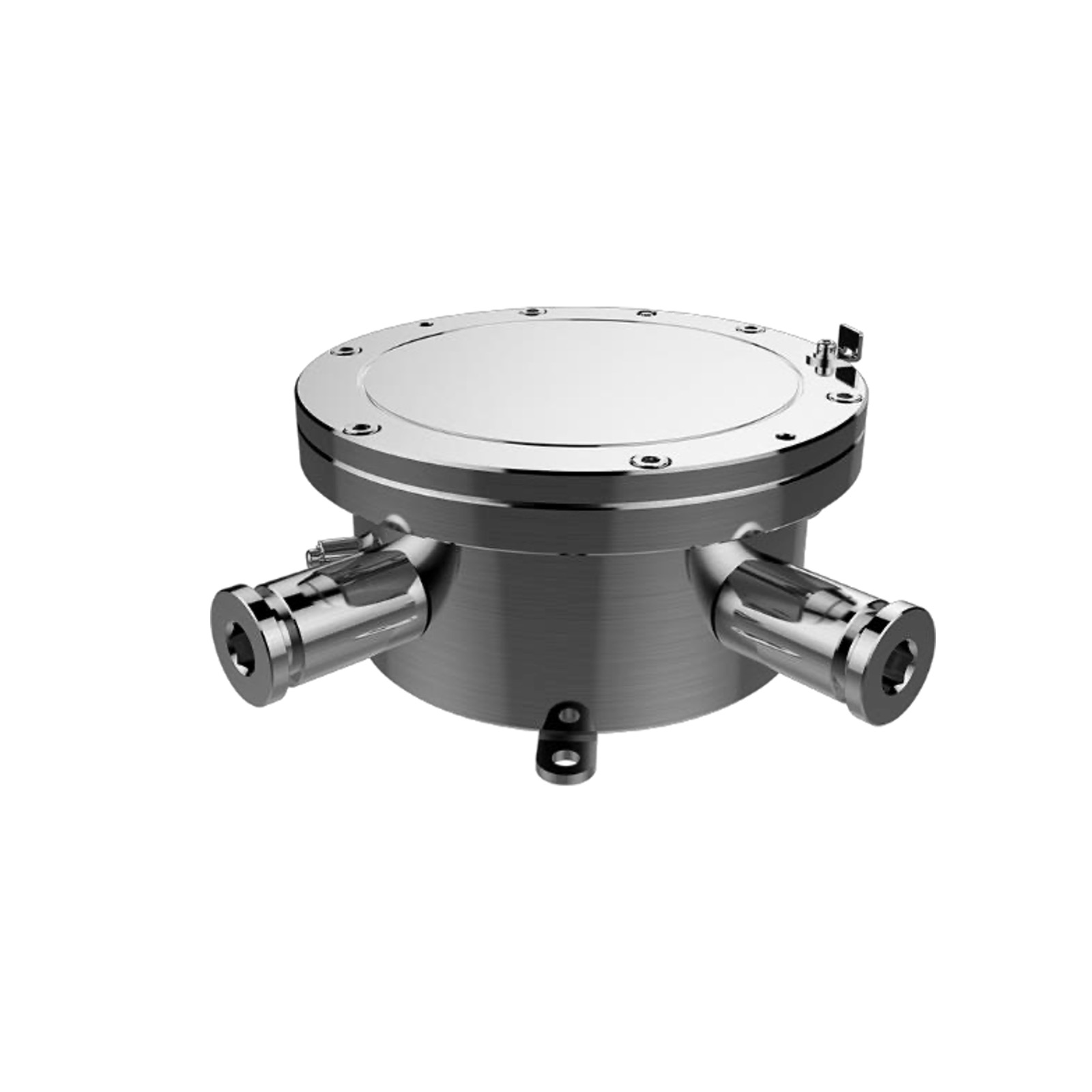

DS-2781ZJ-X | SUPPORT - TERMINAL BOX - EXPLOSION PROOF - STAINLESS STEEL 304 - HIKVISION
Characteristics:
- 304 stainless steel material
- Explosion Proof
- Certified performance compliant with ATEX and IECEx standards
- 4 holes for wiring M25 × 1.5

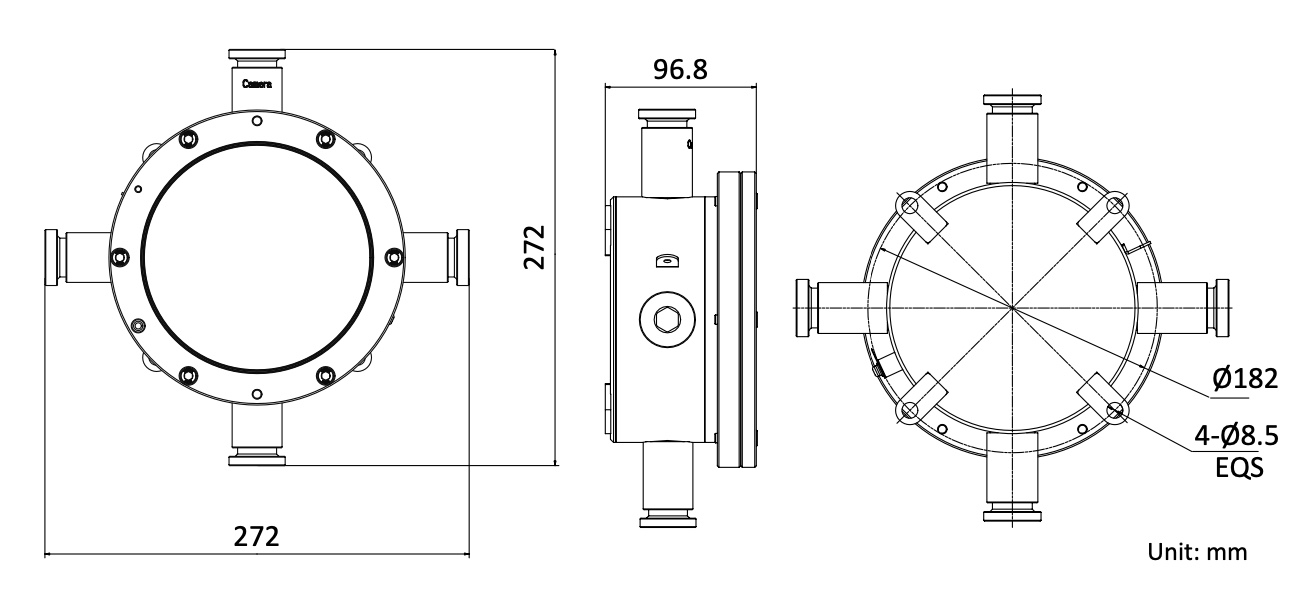

- Dimensions: 272mm × 272mm × 96.8mm
- Weight approx .: 6.7Kg
Attention:
- Read carefully and strictly follow the instructions supplied during the product installation procedure
- Purchase certified cable glands, sealed with fixing compound for cable configuration
- Make sure that the load capacity of the reference wall is at least 8 times the weight of the device
Data sheet
| DS-2780ZJ-X | |
| Parameters |
Explosion-Proof Terminal Box |
| Material |
Stainless steel 304 |
| Dimensions |
272 mm × 272 mm × 96.8 mm (10.7 "× 10.7" × 3.8 ") |
| Weight |
Approx. 6.7 kg (14.1 lb.) |
| Cable Outlet |
4 cable outlets, M25 × 1.5 |
| Operating Conditions |
-40 ° C to + 60 ° C (-40 ° F to 140 ° F), 95% RH or less (non-condensing) |
| Hazardous Area |
Zone 1, Zone 2, Zone 21, and Zone 22 |
| Ingress Protection | IP68 |
| Interface | 110 to 240 VAC power input, 12 VDC power output, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface |
| Power Adapter Presinstalled | Yes. Input: 110 to 240 VAC, 1.6 A (at 110 VAC input, at rated load). Output: 12 VDC, 2A |
| Wire Gauge | No. 22 to No. 12 AWG, max. 3,294 mm |
| Applicable Device | Device whose input voltage is 12 VDC |
