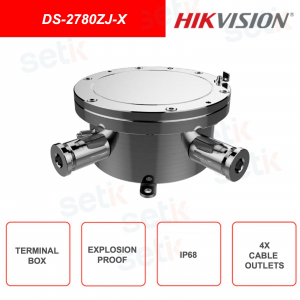

HIKVISION - DS-2780ZJ-X - Explosion Proof Terminal Box - 4 Wiring Holes - IP68 - 304 Stainless Steel
Support - Terminal Box - Explosion Proof - HIKVISION DS-2780ZJ-X
Product manufactured in 304 stainless steel. Ingress protection with IP68 level standards - Explosion proof, ATEX and IECEx certified - Design with 4 outputs for wiring - Ideal for security systems requiring the highest degree of safety - Product high quality.
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
DS-2780ZJ-X | SUPPORT - TERMINAL BOX - EXPLOSION PROOF - HIKVISION
Features:
- 304 stainless steel material
- Explosion Proof
- Certified performance compliant with ATEX and IECEx standards
- 4 holes for wiring M25 × 1.5
- With rings to seal the exits
- Dimensions: Ø12mm × 2, Ø9mm × 2, Ø7mm × 2, Ø5mm × 2
- Weight approx .: 6.4Kg
- Read carefully and follow the instructions during the product installation procedure
- Make sure that the load capacity of the reference wall is at least 8 times the weight of the device
Data sheet
| DS-2780ZJ-X | |
| Parameters | Explosion-Proof Terminal Box |
| Material | stainless steel 304 |
| Dimensions | 272 mm × 272 mm × 96.8 mm (10.7 "× 10.7" × 3.8 ") |
| Weight | Approx. 6.4 kg (14.1 lb.) |
| Cable Outlet | 4 cable outlets, M25 × 1.5 |
| Operating Conditions | -40 ° C to + 60 ° C (-40 ° F to 140 ° F), 95% RH or less (non-condensing) |
| Hazardous Area | Zone 1, Zone 2, Zone 21, and Zone 22 |
| Ingress Protection | IP68 |
| Interface | 100 to 240 VAC / 24 VAC / 8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at / af supported) |
| Power Adapter Presinstalled | No |
| Wire Gauge | No. 22 to No. 12 AWG, max. 3,294 mm2 |
| Applicable Device | Device that uses 110 to 240 VAC / 24 VAC / 8 to 36 VDC / PoE (802.3 at / af) as power supply |
