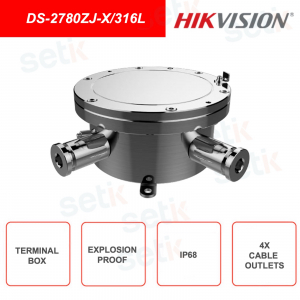

HIKVISION - DS-2780ZJ-X-316L - Terminal Box - Explosion-Proof - 4 holes for wiring - IP68 - 316L stainless steel
Support - Terminal Box - Explosion Proof - HIKVISION - DS-2780ZJ-X-316L
Product manufactured in 316L stainless steel . Input protection with IP68 standard - Explosion proof, ATEX and IECEx certified - Design with 4 outputs for wiring - Ideal for security systems that require the highest degree of safety - High quality product.
FIND INSTALLER
DS-2780ZJ-X-316L | SUPPORT - TERMINAL BOX - EXPLOSION PROOF - HIKVISION

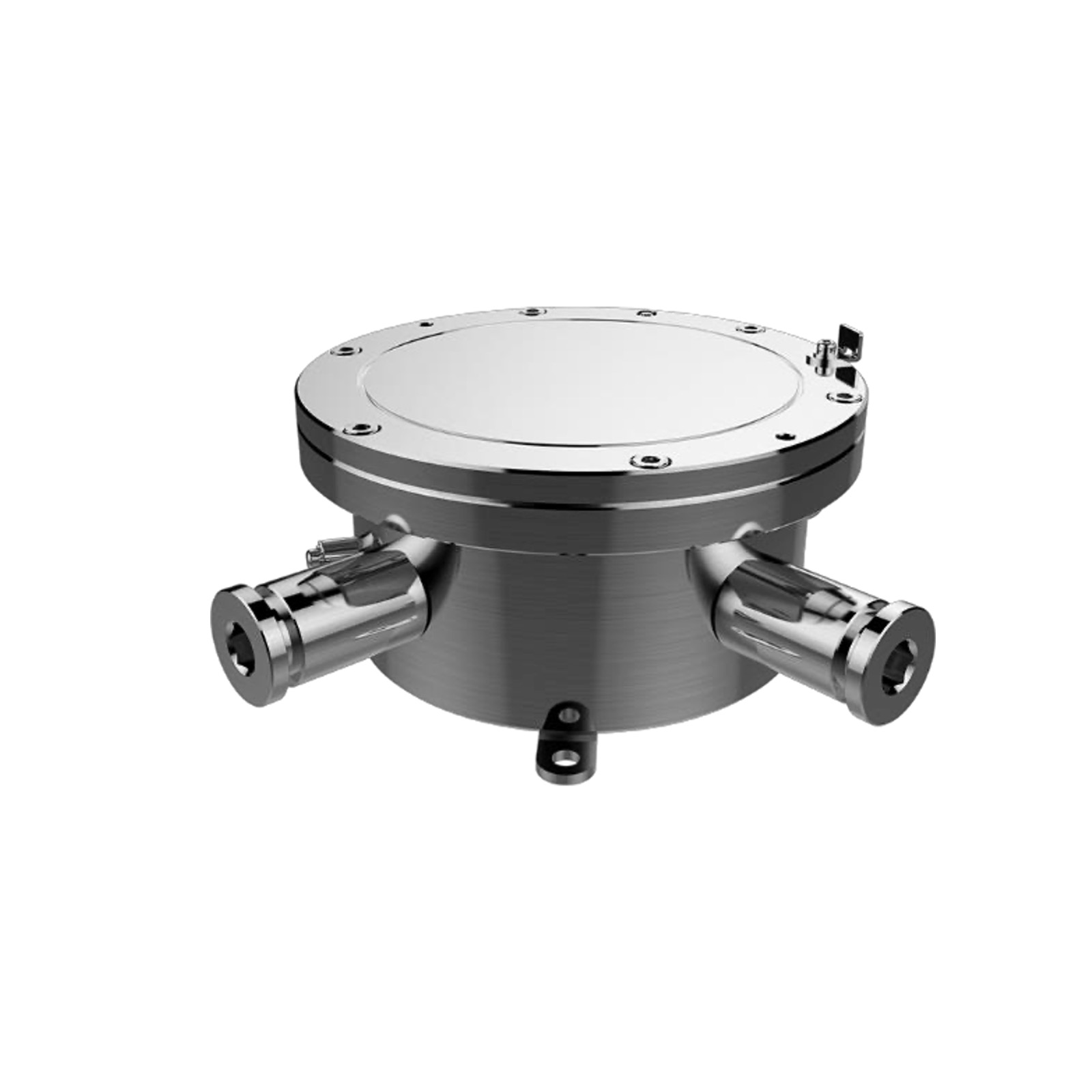

Explosion-proof bracket, terminal box Terminal Box with 4 outputs for wiring (M25 × 1.5) - Complies with IP68 protection standard, for protection of inputs - Explosion-proof feature complies with ATEX and IECEx certification - The product is manufactured in 316L stainless steel - Dimensions: Ø12mm × 2, Ø9mm × 2, Ø7mm × 2, Ø5 mm × 2 - With locking rings - Approximate weight: 6.4Kg - Due to its characteristics, this accessory is suitable for '' use in video surveillance systems that guarantee maximum safety.
Features:
- 316L stainless steel material
- Explosion Proof
- Certified performance compliant with ATEX and IECEx standards
- 4 holes for wiring M25 × 1.5
- With rings to seal the exits
- Dimensions: Ø12mm × 2, Ø9mm × 2, Ø7mm × 2, Ø5mm × 2
- Weight approx .: 6.4Kg
Caution:?
- Read carefully and follow the instructions during the product installation procedure
- Make sure that the load capacity of the reference wall is at least 8 times the weight of the device
Data sheet
| DS-2780ZJ-X-316L | |
| Parameters | Explosion-Proof Terminal Box |
| Material | stainless steel 316L |

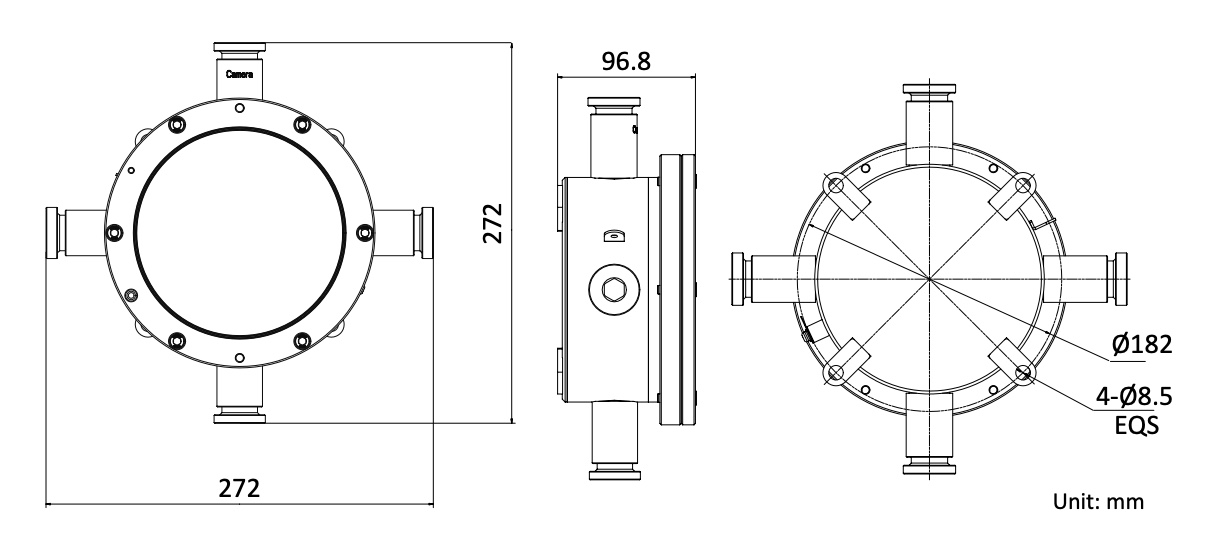

| Dimensions | 272 mm × 272 mm × 96.8 mm (10.7 "× 10.7" × 3.8 ") |
| Weight | Approx. 6.4 kg (14.1 lb.) |
| Cable Outlet | 4 cable outlets, M25 × 1.5 |
| Operating Conditions | -40 ° C to + 60 ° C (-40 ° F to 140 ° F), 95% RH or less (non-condensing) |
| Hazardous Area | Zone 1, Zone 2, Zone 21, and Zone 22 |
| Ingress Protection | IP68 |
| Interface | 100 to 240 VAC / 24 VAC / 8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at / af supported) |
| Power Adapter Presinstalled | No |
| Wire Gauge | No. 22 to No. 12 AWG, max. 3,294 mm2 |
| Applicable Device | Device that uses 110 to 240 VAC / 24 VAC / 8 to 36 VDC / PoE (802.3 at / af) as power supply |
