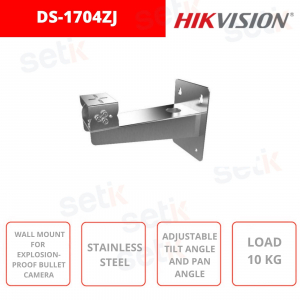

Wall bracket for video surveillance cameras Explosion-Proof Bullet Camera - Hikvision DS-1704ZJ
Wall bracket, resistant to explosions or bullets, with adjustable angle of inclination.
Product manufactured in stainless steel, Natural Stainless Steel gray color and maximum supported load of 10 KG.
FIND INSTALLER
Description Product Details Data Sheet Further Details Download

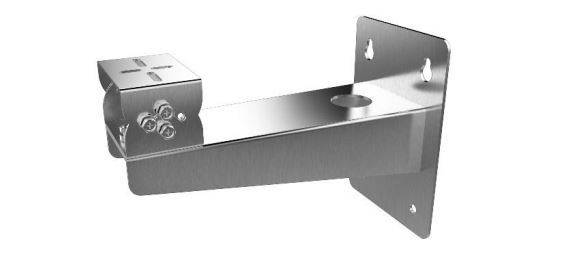

DS-1704ZJ | HIKVISION WALL MOUNT, FOR EXPLOSION-PROOF BULLET CAMERA.
Natural Stainless Steel gray color, with tilt angle adjustable from 45 ° to -45 ° and pan angle from -45 ° to 45 °.
Easy to install thanks to the wiring hole design.
Designed for explosion and bullet resistant cameras.
Features:
- Item made of stainless steel
- Adjustable tilt angle from 45 ° to -45 ° and pan angle from -45 ° to 45 °
- The wiring hole design facilitates the installation procedure
Note:
- The bracket should be installed on a flat surface
- The wall must carry a minimum load equal to 3 times the weight of the bracket and the installed camera
- Maximum load capacity: 10 KG
Data sheet
| DS-1704ZJ | |
| Parameters | Wall Mount for Explosion-Proof Bullet Camera |
| Appearance | Natural Stainless Steel Color |
| Material | Stainless Steel |

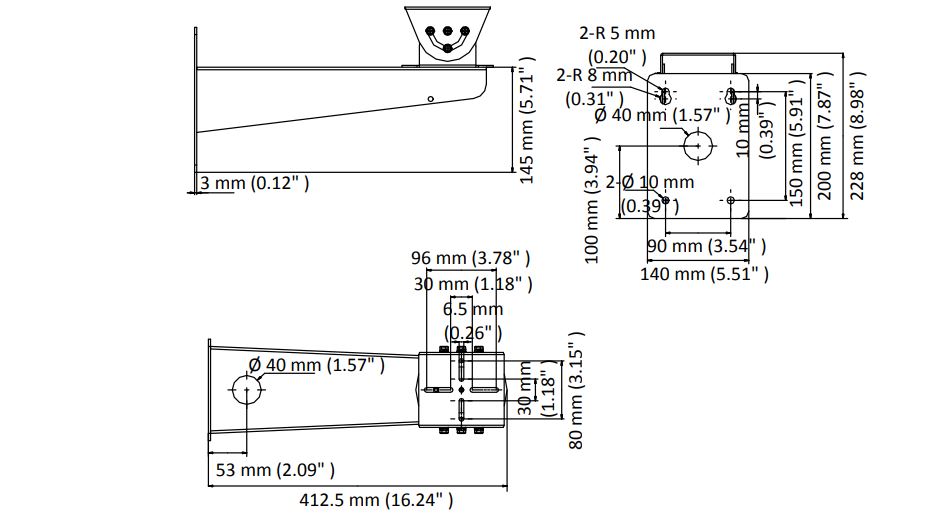

| Dimension | 412.5 mm × 140 mm × 228 mm |
| Weight | 2160 g |
