Pendant mount for ceiling mounting, ideal for video surveillance cameras - Hikvision DS-1662ZJ
Bracket for ceiling anchoring, column, in aluminum alloy.
Hikvision White color, ideal for configuring video surveillance systems.
For indoor and outdoor use.
FIND INSTALLER
discover the available quantity

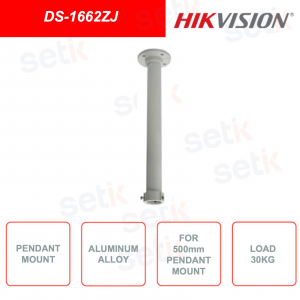

DS-1662ZJ | CEILING PENDANT SUPPORT, FOR VIDEO SURVEILLANCE CAMERAS - FOR INDOOR AND OUTDOOR USE - HIKVISION
Made of aluminum alloy, Hikvision White color.
Surface spray finish and maximum guaranteed load of 30KG.
Suitable for indoor and outdoor use.
It is suggested to pay attention to the color combination.
Features:
- The article is made of aluminum alloy, with surface finishing treatment by spray
- Built for use in indoor and outdoor environments
- Entry hole design for wiring
- Better waterproof seal thanks to the rubber design
- With the safety cable, installation is made safer and easier
Note:
- It is suggested to be careful in choosing the color combination
- The bracket must be applied on a flat surface
- The wall must bear a minimum load equal to at least 3 times the weight of the camera and the support
- Maximum load capacity guaranteed for the product: 30KG
Data sheet
| DS-1662ZJ | |
| Parameters | Pendent Mount (50cm) |
| Color | Hikvision White |
| Feature | Suit for 500mm pendent mount |
| Material | Aluminum alloy |
| Dimension | 116.5x500 mm |
| Weight | 960 g |
Further details
Caution:
the figure presented in the installation diagram has the sole purpose of illustrating the steps of the installation procedure.
