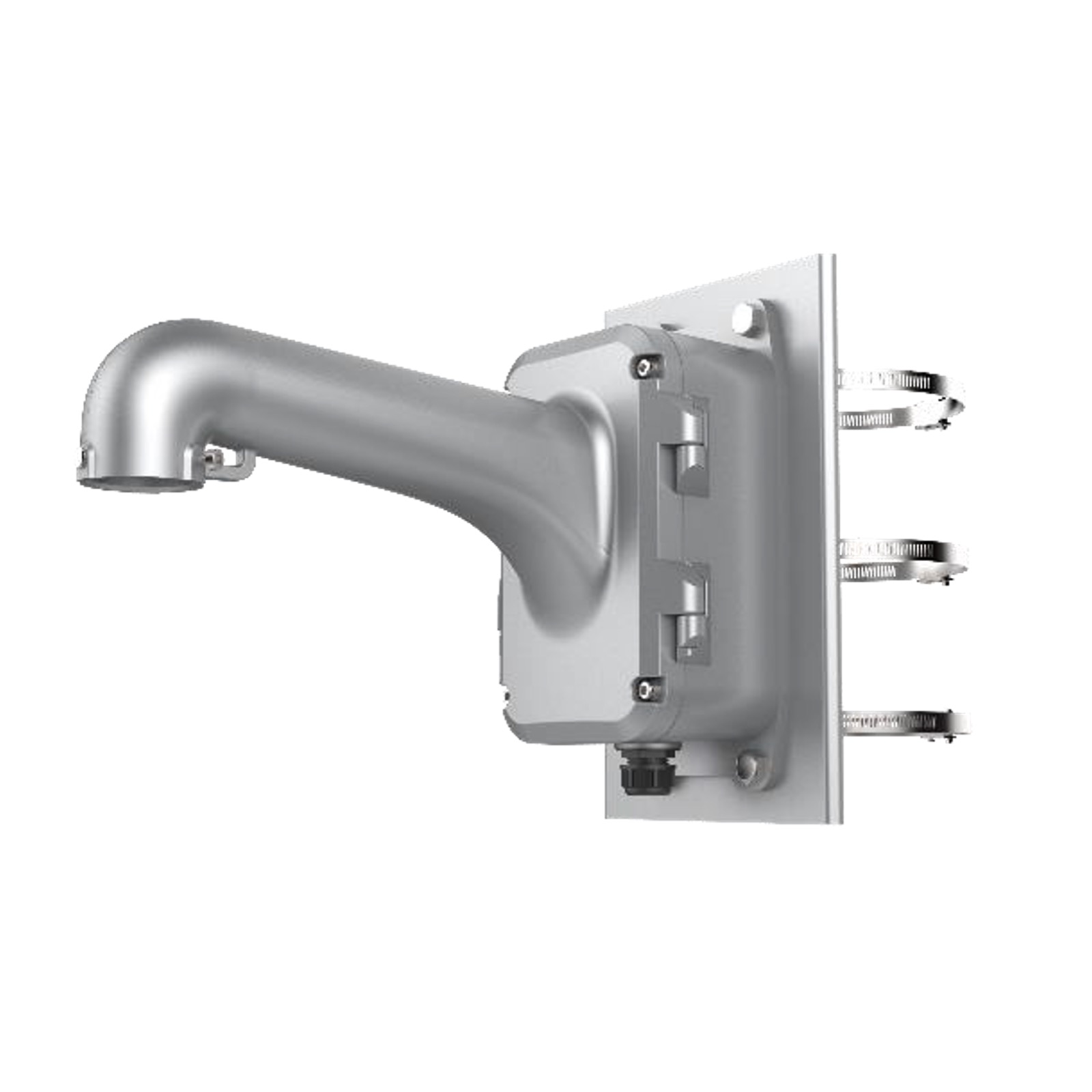

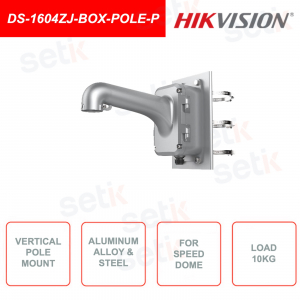

HIKVISION DS-1604ZJ-BOX-POLE-P vertical pole bracket, ideal for speed dome cameras, with junction box.
Vertical pole mounting bracket, Hikvision DS-1604ZJ-BOX-POLE-P for combination with Speed Dome cameras, with junction box included.
The product is made of aluminum alloy and steel, Platinum Gray color, and has a maximum load of 10KG.
Suitable for indoor and outdoor use (with special waterproof rubber accessory).
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
DS-1604ZJ-BOX-POLE-P | BRACKET FOR VERTICAL POLE, COMPATIBLE WITH SPEED DOME CAMERAS, WITH JUNCTION BOX, IN ALUMINUM ALLOY AND STEEL.
Made of aluminum alloy and steel, Platinum Gray color, with spray-treated surfaces.
Ideal for indoor and outdoor use.
Features:
- For mounting the vertical pole, with incorporated junction box
- Aluminum alloy and steel, with surface spray treatment
- Adjustable diameter: 100mm -> 200mm
- Bottom and rear exit
- Allows housing of the power adapter (24 VAC, 3A) in the junction box
- Thanks to the safety cable, assembly is faster and safer
Note:
- A flat surface is required for product installation
- It is necessary to use waterproof rubber, in case of outdoor application.
- The wall must bear a minimum load equal to at least 3 times the weight of the camera and support
- Maximum guaranteed load: 10KG.
Data sheet
| DS-1604ZJ-BOX-POLE-P | |
| Parameters | Vertical pole Mount for Speed Dome |
| Appearance | Platinum Gray |
| Material | Aluminum Alloy & Steel |

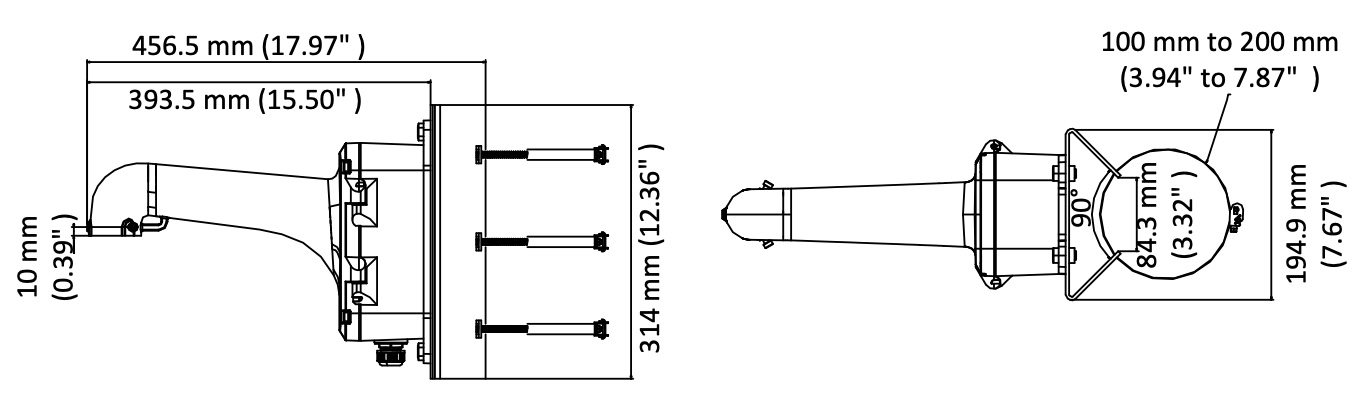

| Dimension | 456.5mm x 314mm x 194.9mm |
| Weight | 5.7 Kg (7.41 lb.) |
