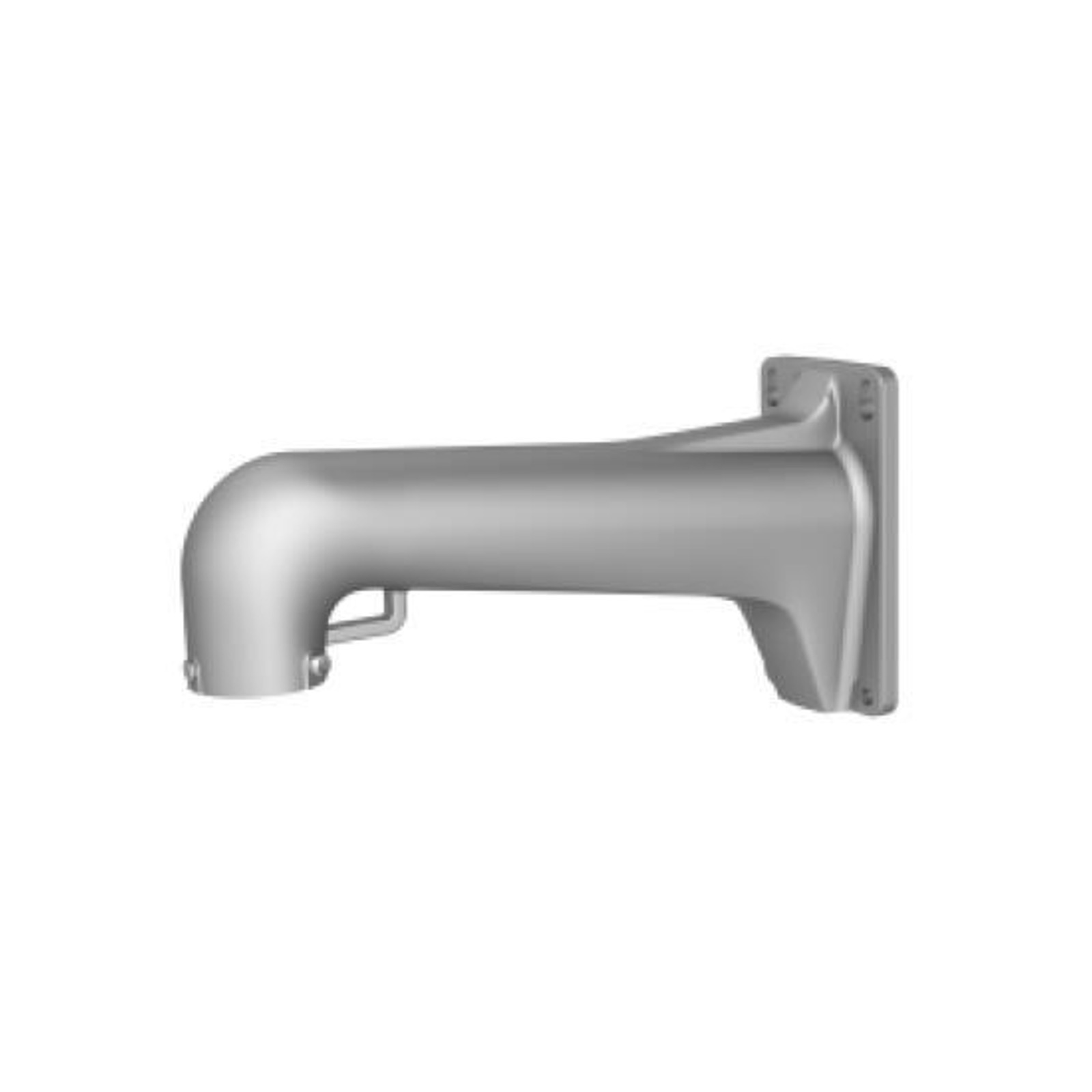

Wall mount bracket, compatible with PanoVu DS-1603ZJ-P cameras .
Made of aluminum alloy, platinum gray Platinum Gray with surface spray treatment, max. 20KG.
Suitable for indoor and outdoor use, with simplified installation.
FIND INSTALLER

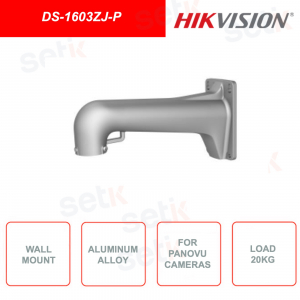

DS-1603ZJ-P | WALL SUPPORT FOR PANOVU HIKVISION CAMERAS, IN PLATINUM GRAY ALUMINUM ALLOY, FOR INDOOR AND OUTDOOR USE.
Bracket for wall mounting of PanoVu type cameras, made of aluminum alloy, Platinum Gray Platinum Gray with spray-treated surfaces, maximum supported load of 20KG.
Easy to install, thanks to the presence of the hook for the safety cable.
Product compatible with indoor and outdoor use (with special waterproof rubber waterproof gasket).
Features:
- Aluminum alloy, with surface spray treatment
- The safety cable hook makes the product easy to install
- Waterproof design, water resistant
Note:
- The bracket requires a flat surface for the installation procedure
- Waterproof rubber is required for outdoor use
- The wall must bear a minimum load equal to at least 3 times the weight of the camera and support
- Max. Loading weight: 20KG
Data sheet
| DS-1603ZJ-P | |
| Parameters | Wall Mount for PanoVu |
| Color | Platinum Gray |
| Material | Aluminum Alloy |

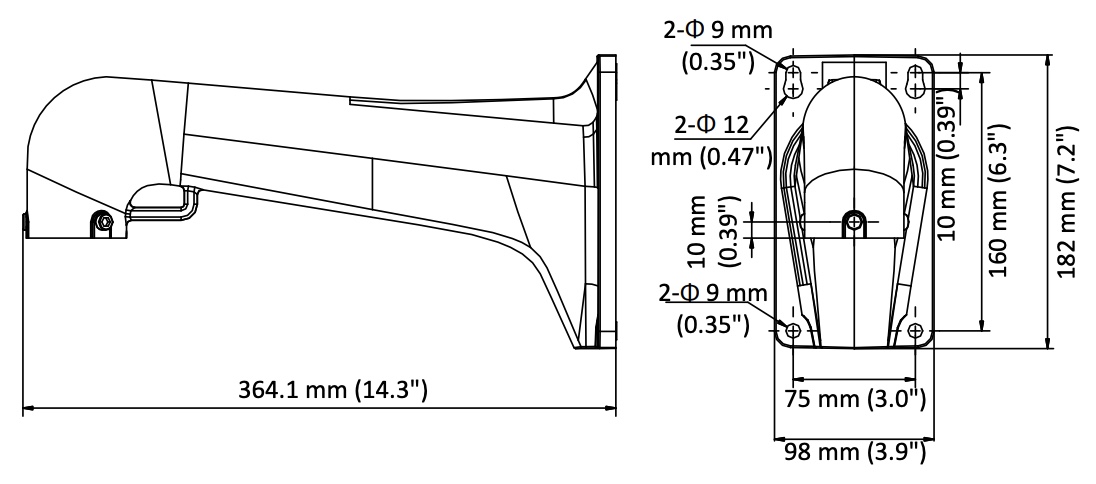

| Dimension | 364.1 mm x 182.0 mm |
| Weight | 1400 g |
