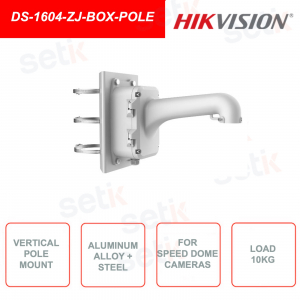

DS-1604ZJ-BOX-POLE | BRACKET FOR SPEED DOME CAMERAS, FOR VERTICAL POLE ASSEMBLY IN VIDEO SURVEILLANCE SYSTEMS, WITH JUNCTION BOX, IN ALUMINUM ALLOY AND STEEL.
Ideal for use with speed dome cameras; maximum guaranteed weight of 10KG.
Easy to install. Junction box included.

Features:
- For vertical pole mounting, with junction box
- Aluminum alloy and steel, with surface spray treatment
- Adjustable diameter, from 100mm to 200mm
- Bottom exit and rear exit
- Possibility to plug the power adapter (AC 24 V, 3 A) into the junction box
- The safety rope hook makes the product easy to install
Note:
- Mount the product on a flat surface
- Use the special waterproof rubber if you want to use it outdoors
- The wall must hold a minimum weight equal to 3 times the weight given by the camera and the support
- Maximum load of the bracket: 10KG.
Data sheet
DS-1604ZJ-BOX-POLE | |
Parameters | Vertical Pole Mount for Speed Dome |
Color | Hikvision White |
Material | Aluminum Alloy and Steel |
Dimension | 456.5 mm x 314 mm x 194.9 mm |
Weight | 5.7 kg |
