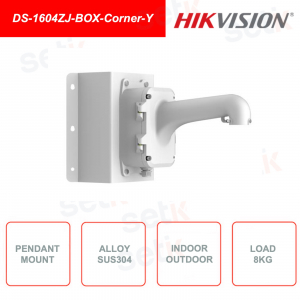

HIKVISION DS-1604ZJ-BOX-Corner-Y corner pendant mount for indoor and outdoor use of speed dome cameras
-50%
Angled pendant mounting bracket for speed dome cameras, indoor and outdoor Hikvision DS-1604ZJ-BOX-Corner-Y .
Manufactured in SUS304 alloy, for indoor and outdoor use, Hikvision White color and surface spray treatment.
Maximum load: 8KG
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
DS-1604ZJ-BOX-Corner-Y | HIKVISION ALLOY SUS304 PENDANT BRACKET FOR WALL MOUNTING FOR SPEED DOME CAMERAS.
HIKVISION wall mount pendant holder, made of SUS304 alloy.
Ideal for setting up indoor and outdoor video surveillance systems, with speed dome cameras.
Ideal for setting up indoor and outdoor video surveillance systems, with speed dome cameras.
Maximum supported load: 8KG.
White Hikvision White color, with spray finish of the surfaces.
Features:
- Alloy with spray surface treatment
- Suitable for indoor and outdoor use
- With output holes for wiring
Notices:
- The bracket must be installed on flat surfaces
- The use of waterproofing rubber is required for outdoor use
- The wall must carry a minimum load equal to 3 times the weight of the camera and the support
- Maximum weight supported: 8KG
Data sheet
| DS-1604ZJ-BOX-Corner-Y | |
| Parameters | Pendant Mount |
| Color | Hikvision white |
| Material | Alloy, SUS304 |
| Dimension | 314 mm x 255.5 mm x 542.5 mm |
| Weight | 6976 g |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
