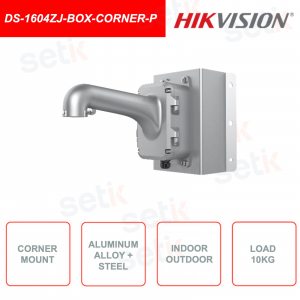

Indoor / Outdoor Wall Mount Bracket Hikvision DS-1604ZJ-BOX-CORNER-P .
The proposed article is made of aluminum alloy and steel, with a maximum guaranteed load of 10KG.
Platinum Gray Platinum Gray color, with spray-treated surfaces.
Compatible with indoor and outdoor placement.
FIND INSTALLER
Description Product Details Data Sheet Further Details Download
DS-1604ZJ-BOX-CORNER-P | ANGULAR BRACKET FOR WALL MOUNTING OF SPEED DOME CAMERAS, IN ALUMINUM ALLOY AND STEEL - HIKVISION
Surface spray finish, Platinum Gray Platinum Gray.
Maximum supported load: 10KG
Ideal for indoor and outdoor use (with special waterproof rubber).
Features:
- Corner bracket, with junction box
- Made of aluminum alloy and steel, with surface spray treatment
- Bottom outlet, rear outlet
- Possibility to plug into the junction box of the power adapter (24 VAC, 3 A)
- Simplified installation, thanks to the hook for the safety cable
Notices:
- The installation must be done on a flat surface
- Use waterproof rubber gasket if you intend to place the product outdoors
- Check the minimum load capacity of the wall, which must be at least 3 times the weight of the camera and the support
Data sheet
| DS-1604ZJ-BOX-CORNER-P | |
| Parameters | Corner Mount for Speed Dome |
| Color | Platinum Gray |
| Material | Aluminum Alloy and Steel |
| Dimension | 542.5 mm x 255.5 mm 200 mm |
| Weight | 6.2 Kg |
