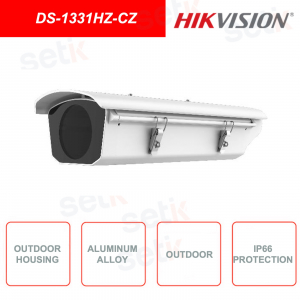

Hikvision housing for outdoor use, made of aluminum alloy, ideal for DS-1331HZ-CZ video surveillance cameras
Housing in aluminum alloy, ideal for use in outdoor video surveillance systems.
Internally mounted cooling fan to ensure optimum operation.
FIND INSTALLER
DS-1331HZ-CZ | HIKVISION HOUSING FOR VIDEO SURVEILLANCE CAMERAS, IN ALUMINUM ALLOY, FOR OUTDOOR USE
Housing for video surveillance cameras, made of aluminum alloy, ideal for setting up outdoor systems.
The product internally mounts the appropriate cooling fan, to guarantee optimal operation.
The product internally mounts the appropriate cooling fan, to guarantee optimal operation.
Ideal for wall, ceiling or pole mounting.
Features:
- Side trim design facilitate installation and maintenance
- Stainless steel double hinge design, ingress protection up to IP66
- Internally mounted cooling fan
Data sheet
| DS-1331HZ-CZ | |
| Parameters | Outdoor Housing |
| Working Temperature | -30 ° C to 60 ° C (-22 ° F to 140 ° F) |
| Temperature Control |
Fan turns on:> 45 ° C ± 5 ° C (113 ° F ± 41 ° F) |
| Power Supply | 12 VDC |
| Power Consumption | 2 W |
| Material | Main Body: Aluminum Alloy |
| Ingress Protection | IP 66 |
| Dimension | 489.9 mm x 169.4 mm x 99.8 mm |
| Weight | 1900g |
Further details
Compatible with models:
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount
- DS-1293ZJ Wall Mount
- DS-1214ZJ Horizontal Pole Mount
- DS-1269ZJ Pendant Mount
- DS-1233ZJ Column Mount
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
