The TP-Link Omada SG5452XMPP is a 48-port Gigabit L2+ Lite PoE++ managed switch with 4 x 10Gbps SFP+ slots , designed for high-performance enterprise networks. It offers a total PoE budget of up to 770W , with 8 PoE++ ports delivering up to 90W per port and 40 PoE+ ports with up to 30W per port , ideal for powering devices such as access points, IP cameras and VoIP phones. Layer 3 features, including Static Routing , RIP , OSPF and DHCP Server/Relay , improve network efficiency. Physical stacking support allows up to 4 units to be connected, providing built-in redundancy and scalable performance. Integrated with the Omada SDN platform, it enables centralized cloud management, making it easy to control and maintain your network from a single interface. Additionally, it supports advanced security strategies such as ACL , Port Security , DoS Defend and 802.1X , ensuring robust protection for your network infrastructure.
FIND INSTALLER

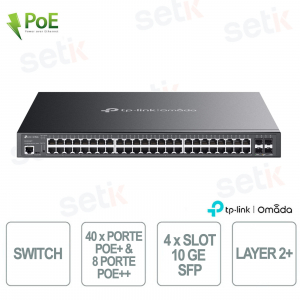

SWITCH 40 POE + PORTS, 8 POE++ PORTS, 4 SLOT 10 GE SFP MANAGED L2+ - TPLINK OMADA
The TP-Link Omada SG5452XMPP is a Lite L2+ managed PoE++ switch, designed for high-performance enterprise networks, offering advanced connectivity, enhanced PoE power, and centralized management.
Equipped with 4 x 10Gbps SFP+ slots, it ensures ultra-fast data transfer and stable interconnection between network devices, while the 48 Gigabit ports provide reliable connectivity for wired devices. The 8 PoE++ (802.3af/at/bt) ports support up to 90W per port, ideal for high-power devices such as Wi-Fi 6 access points, PTZ cameras and advanced PoE terminals. The 40 PoE+ (802.3af/at) ports provide up to 30W per port, with a total PoE budget of 750W, allowing you to efficiently power a large number of network devices.
Network management is optimized with centralized management via Omada SDN, which enables remote control via web and apps, while standalone management via web, CLI, SNMP and RMON provides additional flexibility for advanced configurations.
Layer 3 features, including Static Routing, improve internal network efficiency, while VLAN, ACL, QoS, and IGMP Snooping provide intelligent traffic management. Support for Ethernet Ring Protection Switching (ERPS) ensures rapid recovery from failures, increasing infrastructure reliability.
The high-quality metal rack-mountable design ensures durability and strength, making it a perfect solution for data centers, enterprises and large network installations.
Main features:
- High-performance connectivity: 4× 10 Gbps SFP+ slots for ultra-fast data transfers and connections between switches & 48× Gigabit RJ45 ports for wired devices
- Advanced PoE Power Supply : 8× PoE++ (802.3af/at/bt) ports with up to 90W per port, ideal for Wi-Fi 6 access points, PTZ cameras and high-power devices, 40× PoE+ (802.3af/at) ports with up to 30W per port, perfect for VoIP phones, IP cameras and other devices and 750W total PoE budget to power a large number of network devices
- Advanced Management and Remote Control : Centralized management via Omada SDN, accessible via web or Omada app and standalone management via web, CLI, SNMP and RMON for advanced configurations
- Network traffic optimization : Static Routing to improve internal traffic efficiency, VLAN, ACL, QoS and IGMP Snooping for intelligent network management and Ethernet Ring Protection Switching (ERPS) for rapid recovery in the event of failures
- Robust design and flexible installation : High-quality, durable and long-lasting metal case and rack-mountable format, ideal for enterprise and data center installations
Technical data sheet
| Model | SG5452XMPP |
| HARDWARE FEATURES | |
| Interface | 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+) 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro USB Console Port |
| Number of fans | 3 |
| Physical security lock | √ |
| Diet | 100-240V AC, 50/60Hz |
| PoE ports | Standard: 802.3af/at compliant PoE++ Ports: Ports 1~8 (up to 90W PoE Output per Port) PoE+ Ports: Ports 9~48 (up to 30W PoE Output per Port) Power Budget: 750W* |
| Dimensions (L x W x H) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Mounting type | Rack Mountable |
| Max Power Consumption | 913.4 W (110V/60Hz) (with 750 W PD connected) |
| Max Heat Dissipation | 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected) |
| PERFORMANCES | |
| Switching capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| ARP Table | 16K |
| Buffers (packets) | 12 Mbit |
| Jumbo frame | 9 KB |
| SOFTWARE FEATURES | |
| QoS (Quality of Service) | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Bandwidth Control: Port/Flow-based Rating Limiting Smoother Performance Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ functionality | 128 IP Interfaces: Support IPv4/IPv6 Interface |
| L2 Multicast |
Supports 1000 (IPv4, IPv6) IGMP groups |
| Advanced Features | Automatic Device Discovery BatchConfiguration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features**: L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM sFlow |
| VLAN | VLAN Group: Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 30 Entries Protocol VLAN Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace VoiceVLAN |
| ACL (Access Control List) | Time-based ACL MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS Combined ACL PacketContentACL IPv6 ACL Policy: Mirroring, Redirect, Rate Limit, QoS Remark ACL applies to Port/VLAN |
| Safety | IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries IPv6 MAC Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries DoS Defense DHCP Filter Static/Dynamic Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control |
| IPv6 | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 Neighbor Discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) SDM-Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | SG3452XMPP Switch |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0–40℃ (32–104℉); Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
Power up your devices with Ports | |
Software-Defined Networking (SDN) with Cloud management Remotely manage your access points, switches and gateways – all from a single interface. | |
Lifetime warranty The following product is covered by a lifetime warranty | |
