The TP-Link Omada SG6654X is a high-performance Layer 3 managed switch , ideal for business and professional networks. Equipped with 48 Gigabit ports and 6 x 10Gbps SFP+ slots , it offers high speed, advanced management and enterprise-level security . Integrated with Omada SDN , it supports web-based cloud management and Omada app for optimal remote control.
FIND INSTALLER

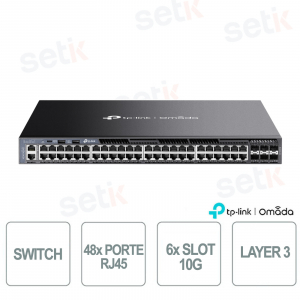

SWITCH 48 GIGABIT PORTS & 6 SLOT 10G MANAGED L3 - TPLINK OMADA
The TP-Link Omada SG6654X is a Layer 3 managed switch designed for enterprises, data centers and professional networks that require high performance, redundancy and advanced security. Equipped with 48 Gigabit RJ45 ports and 6 10Gbps SFP+ slots, it offers high-speed connectivity, perfect for environments with intensive data traffic.
With a switching capacity of 216 Gbps, it ensures smooth and bottleneck-free data transfers, while physical stacking ensures redundancy and scalability, improving network reliability and uptime.
Advanced Layer 3 features, including RIP, OSPF, ECMP, VRRP, PIM-DM and DHCP Server/Relay, optimize traffic management and make the network infrastructure more efficient and dynamic. For security, it supports ACL, Port Security, DoS Defend and 802.1X authentication, protecting the network from unauthorized access and cyber threats.
Designed for maximum reliability, the switch is equipped with two fixed internal power supplies, ensuring continuous operation without interruptions. It also supports VRRP and ERPS, improving fault tolerance and ensuring maximum network stability.
Integration with Omada SDN enables centralized cloud management, accessible remotely via web and Omada app, simplifying network monitoring and configuration. For those who need local control, the device offers standalone management via web interface, CLI, SNMP and RMON.
Main features:
- High-performance connectivity: 48 Gigabit RJ45 ports for fast and reliable wired connections, 6 10Gbps SFP+ slots for high-speed and scalable connections, and 216Gbps switching capacity to ensure smooth and bottleneck-free network traffic
- Advanced reliability and redundancy : Physical stacking to improve performance and ensure business continuity, two fixed internal power supplies for stable and safe power, and VRRP and ERPS support for automatic failover and advanced redundancy
- Layer 3 Advanced Features : Support for RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay and intelligent traffic management for networks and traffic distribution optimization and advanced routing
- Maximum security and network protection : ACL (Access Control List) for advanced traffic control and Port Security, DoS Defend and 802.1X authentication to prevent unauthorized access
- Smart and Centralized Management: Omada SDN for Scalable Cloud Management and Remote Monitoring, Web Access and Omada App for Remote Control Anywhere and Standalone Management via Web Interface, CLI, SNMP and RMON
- Ideal for Business and Data Centers: Perfect for offices, hotels, data centers and environments with high demand for PoE connectivity and high scalability and reliability for a secure and high-performance network infrastructure.
Technical data sheet
| Model | SG6654X |
| HARDWARE FEATURES | |
| Interface | 48× 10/100/1000Mbps RJ45 Ports 6× 10G SFP+ Slots 2× USB 2.0 Ports 1× RJ45 Console Port 1× USB Type-C Console Port 1× RJ45 Management Port |
| Number of fans | Four Internal Fixed Fans |
| Diet | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) |
| Dimensions (L x W x H) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting type | Rack Mountable |
| Max Power Consumption | 39.8W (220V/50Hz) |
| Max Heat Dissipation | 135.81 BTU/hr (220V/50Hz) |
| PERFORMANCES | |
| Switching capacity | 216 Gbps per Unit |
| Stacking | Stacking Number: 4 Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) Stack Bandwidth: Up to 20 Gbps (Full-Duplex) |
| Packet Forwarding Rate | 160.7Mpps |
| ARP Table | 32K |
| Buffers (packets) | 3 MB |
| Jumbo frame | 9 KB |
| SOFTWARE FEATURES | |
| QoS (Quality of Service) | Class of Service 8 Priority Queues Port Priority IEEE 802.1p Priority DSCP Priority Queue Min-Bandwidth Schedule Mode (SP, WRR, SP+WRR) Bandwidth Control Rate Limit Strom Control VoiceVLAN User Defined OUI Smoother Performance Action for Flows QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features |
IP Interfaces |
| L2 and L2+ functionality |
Link Aggregation |
| Advanced Features | Automatic Device Discovery BatchConfiguration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features 802.3ah Ethernet Link OAM L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) DDM sFlow |
| VLAN | Max 4K VLAN Group (802.1q VLAN) 802.1Q Tagged VLAN MAC VLAN entries: 200 Multicast VLAN VLAN Management VLAN VPN (QinQ): Max 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries VLAN-VPN VLAN Mapping VLANReplace VoiceVLAN Private VLAN |
| Safety | Port Isolation CPU Defend ARP Inspection (Dynamic ARP Inspection) DoS Defense IP-MAC-Port Binding 1,024 Entries DHCP Snooping ARP Inspection IPv4 Source Guard IPv6 MAC Port Binding 1,024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard DHCP Filter Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unknown-unicast Storm Control kbps/ratio control mode 802.1X Port base authentication Mac basic authentication VLAN Assignment MAB GuestVLAN Support RADIUS authentication and accountability AAA (including TACACS+) Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv2 IP/Port/MAC based access control |
| MANAGEMENT | |
| Omada App |
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.n |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM-Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics Password Recovery SNTP System Log EEE |
| OTHER | |
| Package Contents |
SG6654X Switch |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
Functionality |
|
|
High-speed Connections and Powerful Stacking |
|
|
Advanced Layer 3 Features |
|
| High Reliability
Optional redundant, field-replaceable, hot-swappable power supplies and VRRP make it the ideal choice for a reliable network architecture.** ERPS supports rapid protection and recovery in a ring topology. |
|
|
Advanced security features |
|
|
Omada SDN
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
