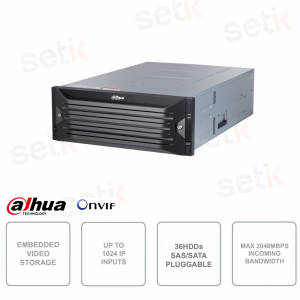

Integrated 36-bay video storage with 1024 IP In-ANR channels

Technical Specs

System

Main Processor

Dual 64-bit high-performance multi-core processors

Operating System

Embedded LINUX OS

Operating Interface

Web (PCAPP)

Controller

Single controller

Cache

16 GB by default (extendable to 256 GB)

AI Applications

AI by Camera

Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required), face & body detection, crowd distribution, smart thermal (call detection, visible channel-smoking detection, thermal channel-smoking detection)

Camera Compatibility

Thermal

Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling

People Counting

Works with camera for tripwire people counting, regional people counting and queue people counting

Bullet-PTZ Smart Track

Works with camera for manual tracking, auto tracking, click positioning and select positioning

Fisheye Dewarp

Supports dewarping for fisheye cameras

Cluster

Cluster

N+M

Audio and Video

Access Channel

1024

Multi-screen display

Customized display, max 16-channel PCAPP live view

Third Party Camera Access

ONVIF; RTSP; Sony; Panasonic; Axis; Arecont; Pelco; Canon; Samsung

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711A; G.711U; PCM; G726

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; iSCSI; FTP; SMB; NFS; UPnP; SNMP; IPv6

Mobile Phone Access

DMSSS

Interoperability

ONVIF (Profile S); CGI; SDK

Browser

Chrome; PCAPP; IE9 or higher; Firefox

Network Mode

Multiple-address mode;Load balance;Fault-tolerance;Link aggregation

Multichannel Playback

Web playback, max. 16-channel playback

Record Mode

Car records; manual record; motion detection; I alarm

Storage Method

Internal HDD

Backup Method

Peripheral eSATA storage device; peripheral USB storage device

Playback Function

1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame

2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off

Video Direct Storage (Private Protocol)

Incoming: 1024-channel (bandwidth: 2048 Mbps) Recording: 1024-channel (bandwidth: 2048 Mbps) Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps)

Video Direct Storage (Onvif)

Incoming: 1024-channel (bandwidth: 2048 Mbps) Recording: 1024-channel (bandwidth: 2048 Mbps) Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps)

Video Direct Storage (Auto Register)

Incoming: 1024-channel (bandwidth: 2048 Mbps) Recording: 1024-channel (bandwidth: 2048 Mbps) Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps)

Picture Direct Storage

Incoming: 400-channel (550 KB/picture) Recording: 400-channel (550 KB/picture) Outgoing: 400-channel (550 KB/picture)

Disk Group

Yes

RAID

RAID0; RAID1; RAID5; RAID6; RAID10; RAID50; RAID60

Record Management

Supports record control (continuous, event-based, scheduled, scheduled & event-based)

Storage Pool

Yes

Alarm

General Alarm

Motion; tampering; IPC external alarm

Anomaly Alarm

IPC offline alarm; storage errors; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; low altitude space; storage pool exception; temperature alarm; share service

Alarm Linkage

Record; snapshot (full image); alarm uploading; remote device alarm output; audio room; buzzers; log; presets; email, smart tracking and warning light.

Disarming alarm linkage action by period or one-click sync disarm configuration with channels

Port

HDD Interface

36 slots, SATA; SAS Max.20 TB/HDD hot swapping CMR support enterprise-grade HDD

eSATA

1 port

RS-232

1 port

USB

2 × USB3.0 and 2 × USB2.0

VGA

1 port, only for debug

Network Port

1 × 1-GbE management port; 4 × 1-GbE LAN ports

Power

1+1 redundant power supply

Network Port Extension

4×10-GbE optical fiber ports (optional)

General

Disk Bay

36

Form Factor

4U

Power Supply

100–127 VAC/200–240 VAC, 50/60 Hz

Power Consumption

<150 W (without HDD, idling) <700 W (all HDDs connected)

Fan

Intelligent speed regulation fan

Net Weight

30kg (66.14lb)

Gross Weight

45kg (99.21lb)

Product Dimensions

737 mm × 483 mm (with hanger) × 175 mm (29.02" × 19.02" × 6.89") (L × W × H)

Operating Temperature

0 °C to 45 °C (+32 °F to +113 °F)

Operating Humidity

10%–80% (RH), non-condensing

Operating Altitude

5000 m (16404.20 ft)

Installation

Standard 19 inch rack

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
