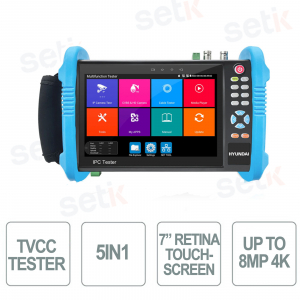

HYU-1075 - CCTV Tester for video surveillance systems - 5in1 - 7 inch Retina touchscreen - WiFi - Audio - PoE test

HYU-1075 - CCTV Tester for video surveillance systems - 5in1 - 7 inch Retina touchscreen - WiFi - Audio - PoE test
QUESTIONS ABOUT THE PRODUCT

 

HYU-1075 - HYUNDAI CCTV Tester - Multifunction, 5in1, with built-in WIFI and 2MP 1080p 7-inch retina screen, with image testing . Supports CVBS, CVI, TVI, AHD, IP up to 4K and IP H.265 up to 8K - Supports H.264/H.265 format - HDMI in: 4K 8MP - HDMI out: 4K 8MP. Audio input and output. PTZ control, UTP cable test, 48V DC PoE output - RJ45 x 2 Gigabit ports - Ideal for the correct configuration of video surveillance systems.



Reference: HYU-1075

Brand: Hyundai Security

EAN:

FIND INSTALLER

€828.59

taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%


Videosorveglianza Hyundai Security

HYUNDAI 5IN1 MULTIFUNCTION CCTV TESTER - BUILT-IN WIFI - 7 INCH 1080p RETINA TOUCHSCREEN - POE

Hyundai Security

HYU-1075 - 5in1 Multifunction CCTV Tester (CVBS, CVI, TVI, AHD, IP), with integrated 7-inch 1080p touchscreen retina screen, Dual Band WIFI functionality - HDMI out: max 8MP 4K. HDMI in: max 8MP 4K. Supports H.265 up to 4k - CVBS Loop Test - Supports ONVIF®. Product designed for the optimal configuration of video surveillance systems - UTP - PoE cable test - PTZ control, image capture, recording and playback of captured videos with 4x zoom. Audio input and output - 2 Gigabit RJ45 ports - WIFI network analyzer - Fast battery charging - Anti-sunlight cover - TV output with color bar generation - Real time display - HYUNDAI - HYU-501N

Product details


  • 5 in 1 Multifunctional CCTV Tester: CVBS, CVI, TVI, AHD, IP
  • With 7" retina touchscreen display with 1080x800 resolution
  • Built-in 2.4GHz 150Mbps WiFi
  • Audio in/out
  • PTZ control
  • UTP cable test
  • PoE test output
  • Supports Onvif
  • 4K HDMI input/output
  • Power supply: 12V DC /2A

Data sheet

Model HYU-1077

  • Specifications

  • 5 in 1 tester for testing 8K security cameras
  • Used for the installation and maintenance of IP and analog cameras
  • Android 11.0 operating system
  • Numerous app tools and automatic OS update support
  • 7" retina touch screen (1200x800 pixels)
  • Testing IP cameras up to 32MP
  • Testing CVI/TVI/AHD cameras up to 8MP
  • HD-TVI 5.0 and HD-CVI 4.0 support
  • CVBS camera tests
  • HD coaxial test: snapshot, video recording and playback, zoom, camera OSD menu control over coaxial cable
  • Auto HD: Automatically recognize HD coaxial camera type and resolution, support snapshot, video recording and playback, coaxial PTZ and OSD menu.
  • CVBS Loop Test: The tester sends and receives the signal from the color bar generator to test the BNC cable
  • PTZ control, RS485 control, 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc.
  • PoE Test: PoE network, power and voltage information
  • IP Discovery: Automatically scan the entire IP network segment, as well as automatically change the tester's IP to the same network segment with the IP of the scanned camera.
  • Onvif Test: (8K IP camera test via main stream, support 32MP IP camera test, OSD menu, and can change the channel name and search the camera's IP address in the entire network segment.
  • Supports more than 100 protocols for testing non-Onvif cameras.
  • Allows you to select the substream code when testing the camera.
  • Advanced UTP cable testing: UTP cable, BNC cable, telephone cable, shielded cable, etc., sequence and continuity test, save reports, near, middle and far fault point detection of RJ45 cable connector.
  • HDMI and VGA Input: HDMI and VGA input functions allow you to use the tester as a monitor and support viewing, recording, screen capture and playback of input images.
  • Power Management 2.0 and PoE Output: The new Power Management 2.0 power management application can display real-time data such as PoE voltage and power, 12V DC input, 24V DC input, PSE and 12V DC; the switch button allows you to control the turning on and off of the PoE outputs. The application can control the turning on and off of the PoE and 24V outputs; The application can control the power on and off of the PoE output function, and display the output voltage and power in real time.
  • Network Test: Quickly troubleshoot network problems, supports route tracing, Link Monitor, DHCP Server, Flashing Port, Ping Test, IP Scan, Port Scan and more.
  • RJ45 cable TDR test: cable pair status, length, attenuation, reflectivity, impedance, slope, etc.
  • Audio test: 1-channel audio signal input, to check whether the sound is normal, 1-channel audio signal, to connect headphones
  • Built-in 2.4GHz 150Mbps WiFi
  • Dual Gigabit Ethernet ports: RJ45 10/100/1000 Mbps adaptable
  • Dual Gigabit Ethernet ports allow you to connect a camera on one port and an NVR on the other to detect online access network status, device traffic, bandwidth and network communication quality information.
  • CVI/TVI/AHD/CVBS input
  • SCAN/CVBS output
  • HDMI input with 4K support
  • HDMI output with 4K support
  • VGA input
  • UTP port
  • RS485 interface
  • Built-in microphone
  • Audio input/output
  • TF card slot
  • Reset button
  • LED flashlight
  • Power input: 12V DC /2A
  • 5V DC, 2A USB power outputs
  • 12V DC, 3A power output to power cameras
  • 24V DC, 2A power output to power PTZ domes
  • Standard 48V DC PoE power output and maximum power of 25.5W
  • Built-in 7.6V, 7800mAh lithium polymer battery
  • Working temperature: -10°C ~ +50°C
  • Dimensions: 240 x 135 x 35 mm
  • Weight: 965g
  • Applications included: EVOPLUS, HYUVMS, ASMS, HYU CONNECT, HYUPLUS
