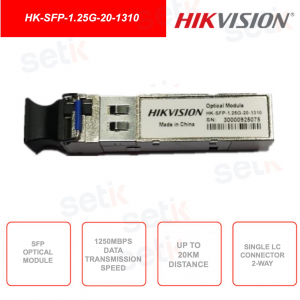

The HK-SFP-1.25G-20-1310 from Hikvision is a compact 3.3V single power supply Optical SFP module. Supports data transmission speed up to 1250Mbps, compatible with ROHS standard, Single bi-directional LC connector, data transmission up to 20Km, Operating temperature -0°C - 70°C.
FIND INSTALLER
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
SFP MODULE - 1.25G ETHERNET - ROHS STANDARD - BIDIRECTIONAL SINGLE FIBER LC - POWER 3.3V - HIKVISION - HK-SFP-1.25G-20-1310
SFP Fiber Optic Optical Module - Power output 3.3V - Safe data transmission up to 20Km - Hot Pluggable - Bidirectional Single Fiber LC connector - Wide operating temperature, from -0°C to 870°C - Relative humidity 30-80% - Data transmission rate: 1250Mbps - Fiber type: SMF, Single fiber, 9/125um - Wavelength: Tx1310nm/Rx1550nm - TX Power: -9~-1dBm - HIKVISION - HK-SFP-1.25G-20-1310
Product details
- SFP Optical Module - HIKVISION - HK-SFP-1.25G-20-1310
- Secure data transmission with a range of up to 20km
- Transmission rate: 1.25G Ethernet 1250Mbps
- Power delivered 3.3V
- Bidirectional Single Fiber LC Connector
- Operating temperature: -0°C up to 70°C
- Relative humidity: 30% - 80%
- Fiber Type: SMF, single fiber, 9/125um
- Power Supply Voltage: DC 3.3V
Data sheet
Item | HK-SFP-1.25G-20-1310 | |
Fiber type | SMF, Single fiber, 9/125um | |
Connector | LC | |
Date Installments | 1250Mbps | |
Connector quantity | 1 | |
Distance | 0~20km | |
Wavelength | Tx1310nm/Rx1550nm | |
TX Power | -9~-1dBm | |
RX Sens(Max.) | -21dBm | |
Operating temperature | 0~70?C | |
Storage temperatures | -40?85?C | |
Relative humidity | 30?80% | |
Power supply voltage | DC 3.3V | |
