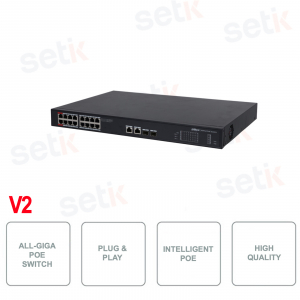

Industrial PoE Switch - 18 RJ45 - 16 Ethernet PoE - 2 Ethernet - 2 SFP Uplink - Dahua - V2

Industrial PoE Switch - 18 RJ45 - 16 Ethernet PoE - 2 Ethernet - 2 SFP Uplink - Dahua - V2
-57%

The PFS3220-16GT-240-V2 by Dahua is an industrial network switch with 20 PoE ports ( 16 PoE + 2 Ethernet + 2 SFP Uplink ) Maximum total power 240W, fast transmissions at rates of 10 / 100 / 1000 Mbps on all ports , Lightning protection, ideal for extending your home or business network. Support PoE, Hi-PoE. PFS3220-16GT-240-V2 - Dimensions : 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73").



Reference: PFS3220-16GT-240-V2

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDUSTRIAL NETWORK SWITCH 16 PoE + 2 Ethernet + 2 SFP Uplink - DAHUA

Dahua Technology
Industrial PoE Switch - Dahua - PFS3220-16GT-240- V2
16 PoE + 2 Ethernet + 2 SFP Uplink - Fast transmissions 10 / 100 / 1000 Mbps on all ports - Lightning protection ( Common mode: 4kV Differential mode: 2kV) - Total power 240W max - Dimensions: 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")

Product details

  • PoE industrial network switch - Dahua
  • Layer 2
  • 16 PoE Ports (IEEE802.3af/IEEE802.3at)
  • 2 Ethernets
  • 2 SPF Uplink
  • Fast transmissions at rates of 10 / 100 / 1000 Mbps
  • PoE transmissions
  • MAC Table size: 8K
  • Supported standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
  • Maximum total power 240W
  • Intelligent PoE
  • Supported Protocols: PoE/Hi-PoE
  • Search and updates via ConfigTool
  • Supports web management
  • High protection against lightning
  • Power supply included
  • Uninterrupted video transmissions
  • High temperature resistance: –10 to 55°C (14°F to 131°F)

Data sheet

Model PFS3220-16GT-240-V2
CERTIFICATION
Layers

Layer 2

Managed

No

Switching Capacity

52Gbps

Packet Forwarding Rate 29.76 Mpps
Packet Buffer Memory

4 Mbit

MAC Table Size 8K
Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

HARDWARE FEATURE
Standard Power Supply Yes
PoE

Yes

Ethernet Port

18

Optical Port

2

Ethernet Port Rate 1Gbps
Optical Port Rate 1Gbps
Number of Business Cards Slots

Port 1–16: 16 × RJ45 10/100/1000M (PoE)
Port 17–18: 2 × RJ45 10/100/1000M (uplink)
Port 19–20: 2 × SFP 1000M (uplink)

Power Supply

100V AC–240V AC

Operating temperature

–10°C to 55°C (14°F to 131°F)

Operating Humidity

10%–90%

Storage Humidity

5%–95%

Power Consumption

Idling: 7W
Full load: 240W

POE
Standard PoE

IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt

PoE Budget

Port 1–2≤90W, Port 3–16≤30W, total≤240W

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

GENERAL
ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 4kV
Differential mode: 2kV

DImensions

440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")

Packaging Dimensions

527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33")
