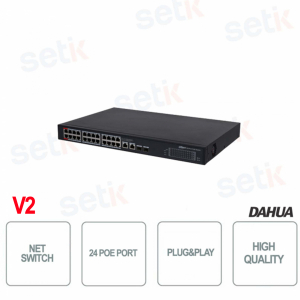

24 Port PoE Switch - Dahua - V2

24 Port PoE Switch - Dahua - V2
-57%

The PFS3228-24GT-240-V2 from Dahua is a 24 Port PoE industrial network switch (24 Gigabit PoE + 2 Gigabit SFP + 2 Gigabit RJ45).

Maximum total power 240W, fast transmissions at rates of 10 / 100 / 1000 Mbps , ideal for extending your home or business network. Support PoE, Hi-PoE.



Reference: PFS3228-24GT-240-V2

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDUSTRIAL NETWORK SWITCH 24 POE PORTS + +2 Gigabit SFP + 2 Gigabit RJ45 - DAHUA

Dahua Technology
PoE industrial switch - Dahua
24 PoE Ports + 2 SFP Ports - Fast transmissions 10 / 100 / 1000 Mbps
Total power 240W max - 4KV Lightning Protection

Product details

Switch di rete industriale 24 porte + 2 SFP - Dahua
  • PoE industrial network switch - Dahua
  • 24 PoE ports + 2 Gigabit SFP + 2 Gigabit RJ45
  • Fast transmissions at rates of 10 / 100 / 1000 Mbps
  • PoE transmissions
  • Supported standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
  • Maximum total power: 240W
  • PoE Management, PoE Settings
  • Supported Protocols: PoE, Hi-PoE
  • All-gig ports
  • Wide working temperature: –10 to 55°C (14°F to 131°F)
  • High protection against lightning
  • Power supply included
  • Uninterrupted video transmissions

Data sheet

Model PFS3228-24GT-240-V2
Layers Layer 2
Managed No
Switching Capacity 52Gbps
Packet Forwarding Rate 38,688 Mpps
Packet Buffer Memory 4 Mbit
MAC Table Size 8K
Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Standard Power Supply Yes
PoE Yes
Ethernet Port 28
Optical Port

2

Ethernet Port Rate 1Gbps
Optical Port Rate 1Gbps
Number of Business Card Slots

24×RJ45 10/100/1000M (PoE)

2 RJ45 10/100/1000M

2 SFP uplink ports (1000M) PoE

Power Supply 100V AC–240V AC
Operating Temperature –10°C to 55°C (14°F to 131°F)
Operating Humidity 10%–90%
Storage Humidity 5%–95%
Power Consumption

Idling: 8W

Full load: 240W

Standard PoE IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE and IEEE802.3bt
PoE Budget Port 1–2≤30W, Port 3–24≤24W, total≤240W
PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
ESD

Air discharge: 8kV

Contact discharge: 6kV

Thunderproof Common mode: 4kV Differential mode: 2kV
Dimensions 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")
Packaging Dimensions 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33")

Further details

No additional details

Downloads

Brochure not available
