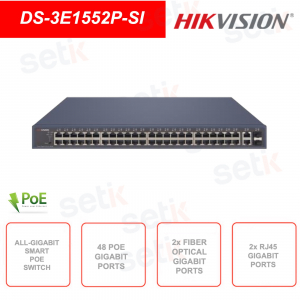

Network switch - managed - 48 Gigabit PoE ports - 2 Gigabit optical fiber ports - 2 Gigabit RJ45 ports

Network switch - managed - 48 Gigabit PoE ports - 2 Gigabit optical fiber ports - 2 Gigabit RJ45 ports
-35%

The Hikvision DS-3E1552P-SI is an intelligent switch with 48 Gigabit PoE ports + 2 Gigabit fiber optics + 2 Gigabit RJ45 ports - PoE Watchdog function to automatically detect and restart unresponsive cameras - 104Gbps switching capacity - Cache internal 12Mbits - 16K MAC Address entries - IEEE 802.3af/at PoE standard - Total PoE Power Budget: 470W - Metal case.



Reference: DS-3E1552P-SI

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


SMART NETWORK SWITCH - 48 GIGABIT POE PORTS + 2 GIGABIT FIBER OPTIC + 2 GIGABIT RJ45 PORTS - POE WATCHDOG - HIKVISION - DS-3E1552P-SI

Hikvision
Intelligent network switch - HIKVISION - DS-3E1552P-SI
48 Gigabit PoE ports + 2 Gigabit fiber optic ports + 2 Gigabit RJ45 ports - PoE Watchdog function - 16K MAC Address Table - Switching Capacity 104Gbps - Internal Cache 12Mbits - Packet Forarding Rate: 77.376Mbps - Metal case.

Product details

Switch intelligente  - Hikvision
  • Intelligent switch - HIKVISION - DS-3E1552P-SI
  • 48 Gigabit PoE ports + 2 Gigabit fiber optic ports + 2 Gigabit RJ45 ports
  • IEEE 802.3af,IEEE 802.3at for PoE ports
  • Generic Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
  • PoE watchdog to automatically detect and restart unresponsive cameras
  • Various layer 2 management protocols such as STP / RSTP, VLAN, link aggregation, SNMP, QoS, etc.
  • Total PoE Power Budget 470W
  • 104Gbps Switching Capacity
  • 16K MAC Address Entries
  • Packet Forwarding rate: 77.376 Mpps
  • Internal Cache 12Mbits
  • Dimensions: 440.00 mm × 44.00 mm × 323.80 mm
  • Net weight of the item: 4.35 Kg
  • Operating temperature: 0 °C to 45 °C

Data sheet

Model

DS-3E1552P-SI

Network

Parameters

Ports

48 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port,2 × 1 Gigabit RJ45 port

Port Type

RJ45 port, full duplex, MDIMDI-X adaptive

Standard

IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z

Forwarding Mode

Store-and-forward switching

Working Mode

Standard mode (default),Extend mode

MAC Address Table

16K

Switching Capacity

104Gbps

Packet Forwarding Rate

77,376 Mpps

Internal Cache

12 Mbits

PoE Power

Supply

Standard PoE

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

End-span: 1/2/7/8(-)?3/4/5/6(+)

PoE Port

PoE: Ports 1 to 48

Max. Port Power

30W

PoE Power Budget

470W

Software

Function

Device Maintenance

Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.

Port Configuration

Support port rate configuration, flow control, and ports enabling.

PoE Configuration

PoE watchdog: Ports 1 to 48 auto detect and restart the cameras that do not respond.

PoE enabling: supported

Port Rate Limiting

Rate-limiting for ingress and egress ports

Storm Control

Storm control of unknown unicast, multicast, and broadcast

Port Mirroring

Supported

Link Aggregation

Support static link aggregation.

Port Isolation

Ports in an isolation group cannot communicate with each other.

QoS

WRR and SP scheduling and port priority

VLANs

Supported

STP

STP and RSTP

SNMP

SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces

LLDP

LLDP supported for port configuration, global configuration, and neighbor discovery

DHCP

DHCP supported

General

Shell

Metal material

Net Weight

4.35 kg (9.59 lb)

Gross Weight

4.5 kg (9.92 lb)

Dimensions (W × H × D)

440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperatures

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

220 VAC, 50/60 Hz

Max. Power Consumption

500W

Power Consumption at Idle

30W

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000- 3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011 +A2: 2013, EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Further details

Downloads

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
