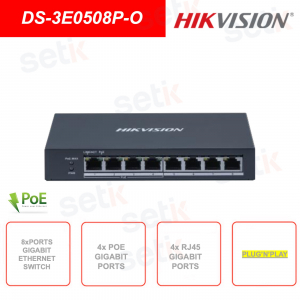

GIGABIT NETWORK SWITCH - 8 ETHERNET PORTS - 4 GIGABIT PoE PORTS - 4 GIGABIT RJ45 PORTS - HIKVISION - DS-3E0508P-O
8 Gigabit Ethernet Ports - 4 Gigabit PoE Ports + 4 Gigabit RJ45 Ports - 4K Mac Address - 16Gbps Switching Capacity - Packet Forward Rate: 11.90Gbps - Internal Cache: 1.50Mbits - PoE Ports: 1-4 - 6kV Lightning Protection - Case Metal - Fanless design.
Product details
- Network Switch - Hikvision - DS-3E0508P-O
- 8 Gigabit Ethernet ports
- 4 Gigabit PoE ports
- 4 Gigabit RJ45 ports
- PoE ports: port 1-4
- Switching capacity: 16Gbps
- Internal cache: 1.50Mbits
- Packet Forward Rate: 11.90Mbps
- Max port power: 30W
- PoE Power Budget 60W
- PoE Standards Supported: IEEE 802.3af,IEEE 802.3at
- Metal Houses
- Fanless design
- Operating temperature: 0 °C to 40 °C
- Power supply: 48 V DC, 1.35 A
- Dimensions: 170.0mm × 27.6mm × 93.1mm
- Item net weight: 0.365Kg
Data sheet
| DS-3E0508P-O | ||
|
Network Parameters |
Ports |
4 × Gigabit PoE port,4 × Gigabit RJ45 port |
|
MAC Address Table |
4K |
|
|
Switching Capacity |
16Gbps |
|
|
Packet Forwarding Rate |
11.90 Mpps |
|
|
Internal Cache |
1.50 Mbits |
|
|
PoE Power Supply |
Standard PoE |
IEEE 802.3af,IEEE 802.3at |
|
PoE Power Pin |
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
|
|
PoE Port |
PoE: Ports 1 to 4 |
|
|
Max. Port Power |
30W |
|
|
PoE Power Budget |
60W |
|
|
General |
Shell |
Metal material, fan-free design |
|
Net Weight |
0.365 kg (0.805 lb) |
|
|
Gross Weight |
0.921 kg (2.030 lb) |
|
|
Dimensions (W × H × D) |
170.0 mm × 27.6 mm × 93.1 mm (6.69'' × 1.08'' × 3.66'') |
|
|
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
|
|
Storage Temperatures |
–40 °C to 85 °C (–40 °F to 185 °F) |
|
|
Operating Humidity |
5% to 95% (no condensation) |
|
|
Relative Humidity |
5% to 95% (no condensation) |
|
|
Power Supply |
48V DC, 1.35A |
|
|
Installation Mode |
Rack (equipped with mounting ears) |
|
|
Surge Protection |
6kV |
|
|
Approval |
EMC |
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130- 4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
|
Safety |
UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
|
Chemistry |
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
|
