The DS-3E0116R-O by Hikvision is a 16-port RJ45 network switch, with 10/100Mbps transmission rates - Switching capacity equal to 3.2Gbps - Internal cache 2 Mbits - Packet Forward Rate: 2.38 Mbps - Made of brushed metal - For wall installation or desktop application - Fan Free Design.
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
ALARM HIKVISION×
SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE | DS-PWA96-M2H-WE | DS-PWA96-Kit-WE
Take advantage now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

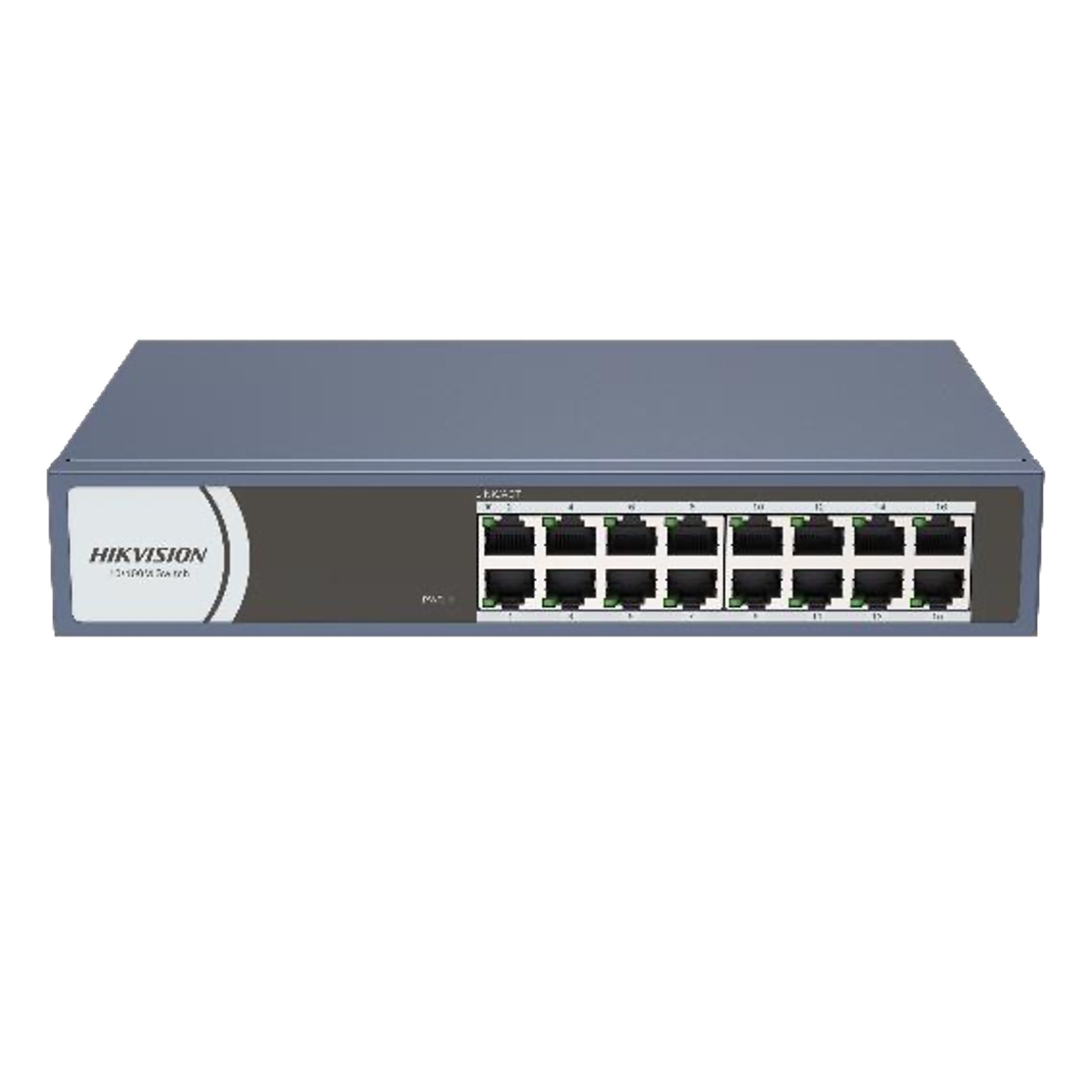

NETWORK SWITCH - 16 RJ45 ETHERNET PORTS 10/100MBPS - HIKVISION - DS-3E0116R-O
Ethernet Network Switch - Hikvision - DS-3E0116R-O
16 RJ45 10/100Mbps Ethernet ports - Mac Address 8K - Switching capacity 3.2Gbps - Packet Forwarding Rate: 2.38Mbps - Internal cache: 2 Mbits - Power supply: 220 VAC - Installation: desktop or wall - Case manufacturing material: metal brushed - Fan Free Design (without cooling fan).
Product details
- Network Switch - Hikvision - DS-3E0116R-O
- 16 RJ45 100M Ethernet ports
- Switching capacity: 3.28Gbps
- Forwarding Mode: Store-and-forward switching
- Packet Forwarding Rate: 2.38Mbps
- Internal cache: 2 Mbits
- In brushed metal
- Fanless design
- Plug & Play (no driver installation required, ready to use)

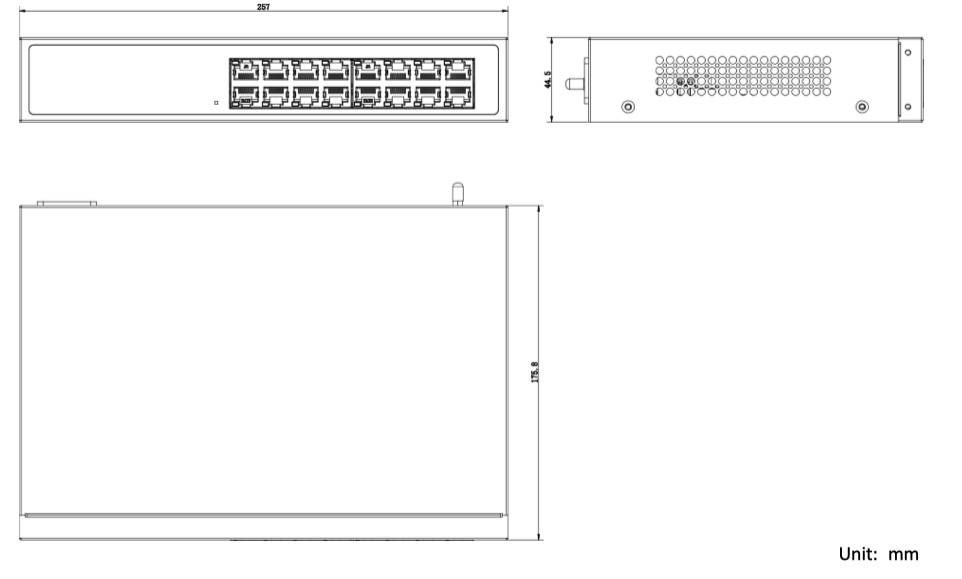

- Dimensions: 257.0mm × 44.5mm × 175.8mm
- Net weight: 1.1Kg
- Supported operating temperature: 0°C to 40°C
- Power supply: 220 VAC, 50/60 Hz
Data sheet
| DS-3E0116R-O | ||
|
Network Parameters |
Ports |
16 × 10/100 Mbps port |
|
MAC Address Table |
8K |
|
|
Switching Capacity |
3.2Gbps |
|
|
Packet Forwarding Rate |
2.38 Mpps |
|
|
Internal Cache |
2 Mbits |
|
|
General |
Shell |
Metal material, fan-free design |
|
Net Weight |
1.5kg (3.3lb) |
|
|
Gross Weight |
257.0 mm × 44.5 mm × 175.8 mm (10.118'' × 1.751'' × 6.921'') |
|
|
Dimensions (W × H × D) |
1.1kg (2.42lb) |
|
|
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
|
|
Storage Temperatures |
-40 °C to 85 °C (-40 °F to 185 °F) |
|
|
Operating Humidity |
5% to 95% (no condensation) |
|
|
Relative Humidity |
5% to 95% (no condensation) |
|
|
Power Supply |
220 VAC, 50/60 Hz |
|
|
Max. Power Consumption |
6.6W |
|
|
Power Consumption at Idle |
<6.6W |
|
|
Approval |
EMC |
FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130- 4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020) |
|
Safety |
UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
|
Chemistry |
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
|
