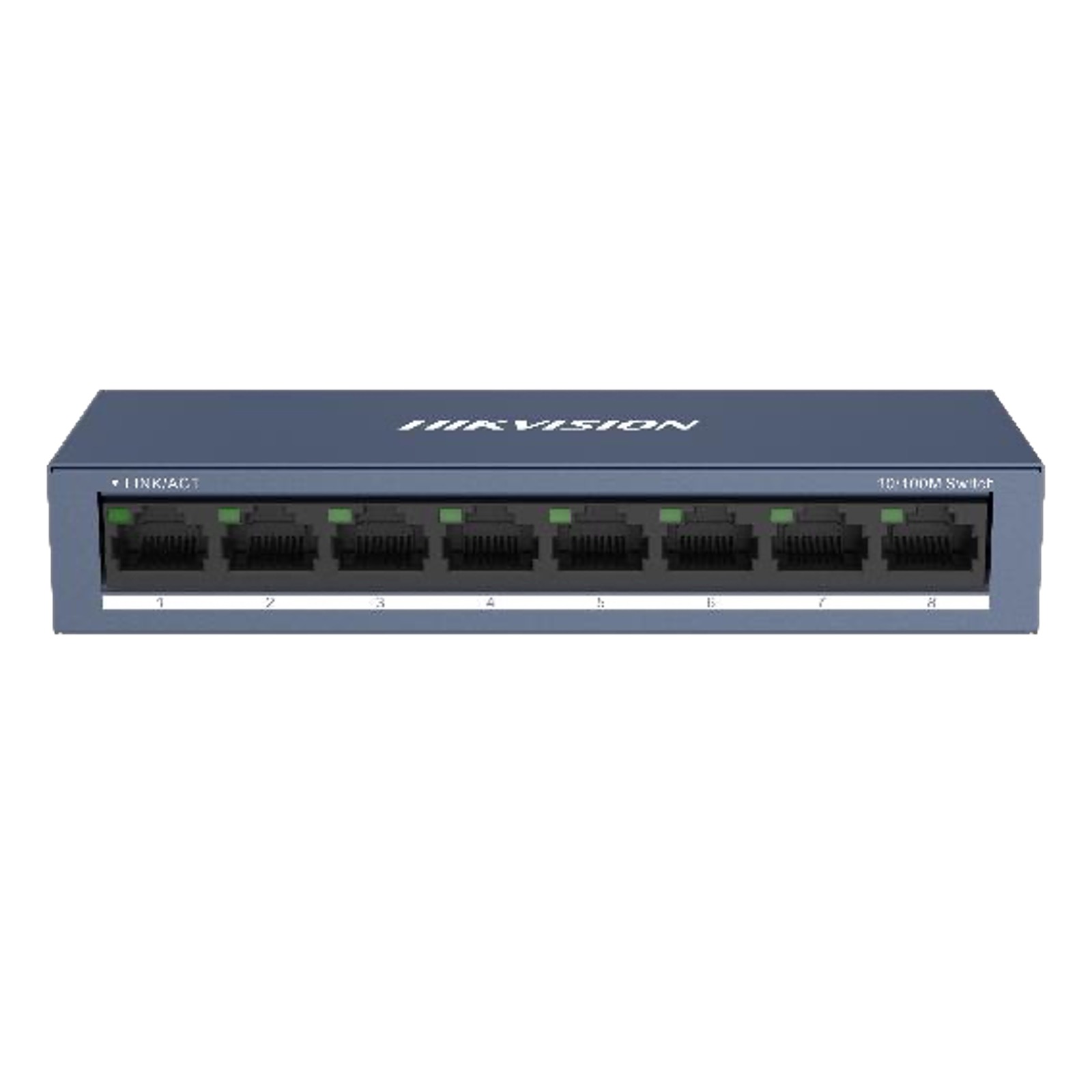

8-PORT NETWORK SWITCH - 10 / 100 Mbps RATE - HIKVISION - DS-3E0108-O

Hikvision
Ethernet switch - HIKVISION - DS-3E0108-O
8 Ports - Fast 10/100 Mbps transmissions - Plug and Play - Metal case - For wall or desktop installation.

Product details

Switch di rete - 8 porte PoE - HIKVISION
  • Network Switch - HIKVISION - DS-3E0108-O
  • 8 RJ45 ports
  • Fast transmissions at rates of 10 / 100 Mbps
  • MAC Table Size Address: 2K
  • Switching capacity: 1.6Gbps
  • Packet Forwarding Rate: 1.19 Mbps
  • Fan-free design
  • Brushed metal body, essential and elegant design
  • Ideal for desktop use or wall mountable
  • Plug & play, easy to install and ready to use

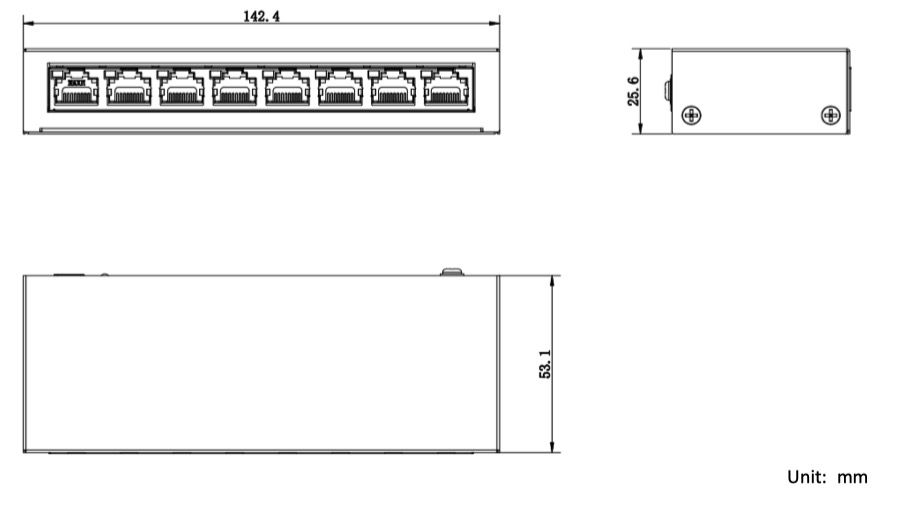

  • Dimensions: 142.4mm × 25.6mm × 53.1mm
  • Item net weight: 0.35kg
  • Operating temperature: 0 °C to 40 °C

Technical data sheet

Model

DS-3E0108-O

Network

Parameters

Ports

8 × 10/100 Mbps PoE ports

MAC Address Table

2K

Switching Capacity

1.6 Gbps

Packet Forwarding Rate

1.19 Mpps

Internal Cache

0.768 Mbits

General

Shell

Metal material, fan-free design

Net Weight

0.35 kg (0.77 lb)

Gross Weight

142.4 mm × 25.6 mm × 53.1 mm (5.606'' × 1.007'' × 2.09'')

Dimensions (W × H × D)

0.2 kg (0.441 lb)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

5VDC, 1A

Max. Power Consumption

5W

Power Consumption at Idle

<5W

Approval

EMC

FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020)

Safety

UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
