Manageable network switch - 8 PoE 10/100M ports - 1 Gigabit RJ45 port

Manageable network switch - 8 PoE 10/100M ports - 1 Gigabit RJ45 port
-35%

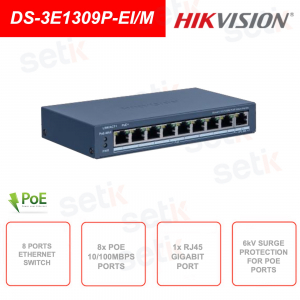

The Hikvision DS-3E1309P-EI/M is a managed network switch, with 8 RJ45 10/100M PoE Ports, 1 Gigabit RJ45 Port. For PoE ports, the IEEE 802.3at/af standard is supported - Network operation status monitoring - Data transmission up to 300m for AF/AT cameras - 6KV lightning protection - 16K MAC address table - Network positioning management - The AF/AT cameras can reach up to 300m in extended mode. Ideal for video surveillance systems. Hikvision - DS-3E1309P-EI/M

Reference: DS-3E1309P-EI/M

Brand: Hikvision

EAN: 6931847199593

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NETWORK SWITCH 8 ETHERNET PORTS - 8 PoE 10/100M Ports - 1 10/100Mbps RJ45 Port - HIKVISION - DS-3E1309P-EI/M

Hikvision
Ethernet switch - Hikvision - DS-3E1309P-EI/M
8 Ethernet Ports - 8 PoE 10/100Mbps Ports - 1 100Mbps RJ45 Port - 16K Mac Address - 5.6Gbps switching capacity - 6KV lightning protection on PoE ports - Manageable - Data transmission up to 300m - Video control and preview - Alarm Real-time Push - Ideal for image and video acquisition in surveillance systems.

Product details

Switch di rete 8 - Hikvision
  • Network Switch - Hikvision - DS-3E1309P-EI/M
  • 8 Ethernet ports
  • 8 PoE 10/100 Mbps ports
  • 1 Gigabit RJ45 port
  • PoE Standards Supported: IEEE 802.3af, IEEE 802.3at
  • Metal - Fanless design
  • Digital data transmission up to 300m supported
  • Monitoring of the operating status of the network
  • Real-time push alarm
  • AF/AT cameras can reach up to 300m by activating extended mode
  • Video control and preview
  • For desktop or wall installation
  • Dimensions: 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
  • Weight: 0.35 kg (0.77 lb)

Data sheet

Model

DS-3E1309P-EI/M

Network

Parameters

Ports

8 × 10/100Mbps PoE port, 1 × Gigabit RJ45 port

MAC Address

Table

16K

Switching

Capacity

5.6Gbps

Packets

Forwarding

Installments

4.17 Mpps

Internal Cache

4 Mbits

PoE Power

Supply

Standard PoE

IEEE 802.3af, IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 8

Max. Port

Power

30W

PoE Power

Budget

60W

Software

Function

Long Range

Ports 1 to 8: up to 300 m.

Long range performance may vary depending on camera model or cable condition.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.

System

Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support management via Hik-Central Pro.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Supports 802.1ab LLDP for peer device discovery.

Support SNMP v1/v2c for third-party management platform access.

Support port mirroring for fault locating.

Storm Control

Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.

Supports port rate limiting based on broadcast, multicast, and unknown unicast packets.

DHCP

DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the

Snooping

network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through Off by default.

General

Shell

Metal material, fan-free design

Net Weight

0.35 kg (0.77 lb)

Gross Weight

1,114 kg (2.45 lb)

Dimensions

(W × H × D)

170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')

Operating

Temperatures

0 °C to 40 °C (32 °F to 104 °F)

Storage

Temperatures

-40 °C to 85 °C (-40 °F to 185 °F)

Operating

Humidity

5% to 95% (no condensation)

Relative

Humidity

5% to 95% (no condensation)

Power Supply

48VDC, 2.5A

Installation

Modes

Desk-Mounted, Wall-Mounted

Max. Power

Consumption

120W

Power

Consumption

in Idle

10W

Surge

Protection

6 KV

Approval

EMC

FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130- 4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
