PONTE WIRELESS - DAHUA - PFM880 - CON ANTENNA 5G - PER TRASMISSIONI VIDEO

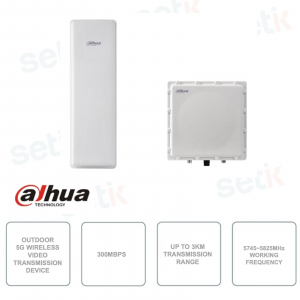

PFM880 - Dahua - Ponte Wireless con antenna 5G
Ideale per trasmissioni di segnale video al'aperto - Protocollo proprietario TDMA - Banda passante: 300Mbps - Frequenza di funzionamento: 5745~5825MHz - Antenna 16dBi - Wireless Standard: IEEE802.11 a/n - Porta LAN RJ45 1Gbps (con alimentazione PoE 802.3at) - Firmware aggiornalbile da remoto - Distanza di trasmissione del segnale finoa 3Km - Protezione per uso outdoors IP66 da polveri e schizzi - Protezione contro i fulmini 6kV.
Dettagli prodotto
 |
Supporta alimentazione PoE! |
 |
Supporta WiFi IEEE802.11 a/n Banda fino a 300Mbps Supporta 5G Distanza di trasmissione fino a 3Km |
 |
Porta RJ45 Gigabit con supporto PoE.
|
 |
Questo prodotto è coperto da Garanzia di 24 mesi. |
Scheda tecnica
|
Model |
DH-PFM880 |
|
Wireless Features |
|
|
Wireless Standard |
IEEE802.11 a/n |
|
Working Frequency |
5745~5825MHz(extended range: 4920~6100MHz) |
|
Wireless Speed |
300Mbps |
|
Modulation Mode |
OFDM |
|
Antenna |
External antenna: gain 16dBi |
|
Output Power |
30dBm (max) |
|
Receiving Sensitivity |
-74dBm@ 65Mbps, -96dBm@1Mbps |
|
Transmission Distance |
0-3Km |
|
Wireless Direction Angle |
Horizontal 90°, vertical 12° |
|
Hardware |
|
|
Power |
1*PoE RJ45(IN: 220V, OUT: 48V/0.5A) |
|
Power Consumption |
Max. 15W |
|
Ethernet Port |
1*LAN RJ45(1Gbps) |
|
Working Temperature |
-30?~+70? |
|
Storage Temperature |
-40?~+80? |
|
Working Humidity |
5%~95%RH( no condensation) |
|
Equipment Dimension |
265mm×265mm×87.5mm |
|
Antenna Dimension |
450mm×140mm×35mm |
|
Equipment Weight |
2.4Kg |
|
Antenna Weight |
1.26Kg |
|
Protection Level |
IP66 |
|
Software |
|
|
Encryption Type |
WPA-PSK/WPA2/CCMP(AES)/TKIP |
|
Network Mode |
Route/Network Bridge |
|
Working Mode |
Access Point/Client/WDS AP/WDS client |
|
Security Mechanism |
IP/MAC address filtering, hide network name and etc. |
|
Network Protocol |
TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
|
TDMA Enhancement |
Support(TDMA eliminate hidden nodes influence and greatly improve one-to-many performance) |
|
Auto ACK Timing Adjustment |
Support(Auto optimize parameter within long-distance communication and make the performance optimal) |
|
Management and Log |
NTP, Syslog, Telnet, AC, SNMP |
|
Web Management Configuration |
Support webpage configuration, AC remote management and SNMP management |
|
Firmware Update |
Support update by web page and AC remote upgrade |
|
Bandwidth Flexible |
5/10/20/40MHz |
Ulteriori dettagli
