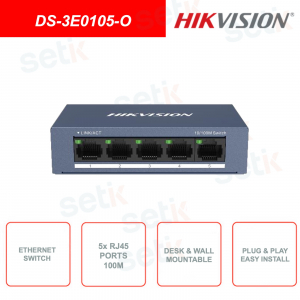

Network Switch - 5 RJ45 LAN Ports 100M - Plug and Play

Network Switch - 5 RJ45 LAN Ports 100M - Plug and Play
NEW -35%

The Hikvision DS-3E0105-O is a 5-port RJ45 network switch, with 100Mbps transmission rates - Switching capacity equal to 1Gbps - Internal cache 0.448Mbits - Packet Forward Rate: 0.744Mbps - Made of metal - For installation in wall or desk application.



Reference: DS-3E0105-O

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NETWORK SWITCH 5 PORTS ETHERNET RJ45 100MBPS - HIKVISION - DS-3E0105-O

Hikvision
Ethernet Network Switch - Hikvision - DS-3E0105-O
5 RJ45 Ethernet ports 100Mbps - Mac Address 1K - Switching capacity 1Gbps - Packet Forwarding Rate: 0.744 Mpps - Internal cache: 0.448 Mbits - Power supply: 5 VDC, 1A - Supported standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x - Installation : desk or wall mounted - Manufacturing material: metal.

Product details

Switch di rete 5 - Hikvision
  • Network Switch - Hikvision - DS-3E0105-O
  • 5 RJ45 100M Ethernet ports
  • Supported Standards:IEEE 802.3,IEEE 802.3u,IEEE 802.3x
  • Switching capacity: 1Gbps
  • Supported standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x
  • Forwarding Mode: Store-and-forward switching
  • Packet Forwarding Rate: 0.744 Mpps
  • Internal cache: 0.448 Mbits
  • Metal
  • Fanless design
  • Plug & Play (no driver installation required, ready to use)
  • Dimensions: 103.05mm × 25.6mm × 61.1mm
  • Net weight: 0.3Kg
  • Supported operating temperature: -40°C to 85°C
  • Power supply: 5 VDC, 1A

Data sheet

Model

DS-3E0105-O

Network

Parameters

Ports

5 × 100Mbps RJ45 port

Port Type

Portable RJ45

Working Mode

Standard mode (default)

Standard

IEEE 802.3,IEEE 802.3u,IEEE 802.3x

Forwarding Mode

Store-and-forward switching

MAC Address Table

1K

Switching Capacity

1Gbps

Packet Forwarding Rate

0.744 Mpps

Internal Cache

0.448 Mbits

General

Dimensions (W × H × D)

103.05 mm × 25.6 mm × 61.1 mm (4.06'' × 1.01'' × 2.41'')

Shell

Metal material, fan-free design

Gross Weight

0.3 kg (0.6615 lb)

Net Weight

0.15 kg (0.3307 lb)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

5% to 95% (no condensation)

Storage Temperatures

-40 °C to 85 °C (-40 °F to 185 °F)

Storage Humidity

5% to 95% (no condensation)

Power Supply

5VDC, 1A

Power Consumption at Idle

<5W

Max. Power Consumption

5W

Approval

EMC

FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 19)

Safety

UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368- 1:2014+A11:2029)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)

Further details

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
