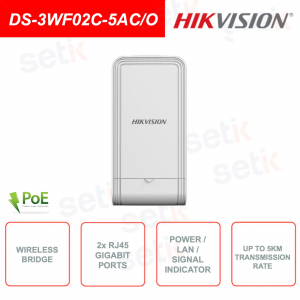

Wireless Bridge - Outdoor - 867Mbps max. - Range up to 5Km - 2xRJ45 Gigabit

model

DS-3WF02C-5AC/O

Wireless

Parameter

Max. Transmission Rate of Air Interface

≤867Mbps

Wireless Standard

IEEE 802.11/a/n/ac

Working Frequency Band

5150 to 5250 MHz 5250 to 5350 MHz (DFS) 5470 to 5725 MHz (DFS) 5725 to 5850 MHz (Note: Available channel may vary with local regulations.)

Transmitting Power

22 dBm (Note: Transmitting power may vary with local regulations.)

Receiving Sensitivity

-58±2dBm@AC80 -MCS9; -84±2dBm@AC80 -MCS0

Antenna Gain

12dBi

Antenna Angle

Beamwidth [3dB] (35°± 5°)

Network

Parameters

Network Mode

Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

Hardware

Parameters

Port Numbers

2 × Gigabit RJ45 ports

LED indicator

Power indicator, LAN indicator, signal intensity indicator

Reset

Hardware reset button

Power Supply

12VDC/1A Passive PoE; 12VDC, 1A

Software

Function

Application Function

TDMA, DFS, TPC, MFI, IPM

Channel Width

20/40/80MHz

Channel Selection

Auto/manual selection

NetworkProtocol

NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)

Security Mode

WPA2-PSK

Security mechanism

Wireless network name hidden

Management Method

Web, HCP

Upgrades

Web, iVMS-4200

System Log

Syslog, control center information

General

Product Dimensions (W×H×D)

92mm × 187mm × 58mm (3.62" × 7.36" × 2.28")

Package Dimensions (W×H×D)

132mm × 228mm × 91mm (5.19" × 8.97" × 3.58")

Net Weight

0.307 kg (0.677 lb)

Gross Weight

0.807 kg (1.779 lb)

Packing Lists

Wireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1

Packing Method

Single unit packing

Working Temperature

-30°C to 70°C (-22°F to 158°F)

Working Humidity

5% to 95% (no condensation)

Storage Temperatures

-40°C to 85°C (-40°F to 185°F)

Storage Humidity

5% to 95% (no condensation)

InstallationMode

Pole mounting

power consumption

2.65W for typical (1-ch 2MP IPC), Max. 4.5W

Approve .

EMC extension

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017)

chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Radio

EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247;
