The Hikvision DS-3E3754TF is a network switch 24 Gigabit ports + 24 Gigabit SFP ports + 6 10 Gigabit optical SFP+ ports - Managed Layer 4 - Switching capacity 598Gbps - PAcket Forward Rate 252Mbps - MAC Table Size 32K - Iron body - Integrated cooling fan.
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
ALARM HIKVISION×
SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE | DS-PWA96-M2H-WE | DS-PWA96-Kit-WE
Take advantage now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

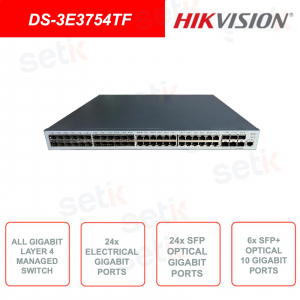

NETWORK SWITCH 24 GIGABIT PORTS - 24 SFP GIGABIT PORTS + 6 SFP+ 10 GIGABIT PORTS - IRON BODY - COOLING FAN - HIKVISION - DS-3E3754TF
Ethernet switch - Hikvision - DS-3E3754TF
Layer 4 - Managed - 24 Gigabit ports + 24 Gigabit SFP ports + 6 10 Gigabit optical SFP+ ports - MAC Table Size Addres 32K - Total switching capacity 598Gbps - PAcket Forwarding Rate 252Mbps - Cooling fan equipped - Metal body.
Product details
- Network switch - Hikvision - DS-3E3754TF
- 24 Gigabit electrical ports
- 24 Gigabit SFP optical ports
- 6 10Gigabit SFP+ optical ports
- Forwarding rate 252Mbps
- MAC Table Size Address 32K
- Overall switching capacity: 598Gbps
- Store-and-forward switching
- Iron shell
- Integrated cooling fan
Data sheet
| Model Name | DS-3E3754TF |
| Network Parameters | |
Port Number | 24 Gigabit electrical ports, 24 Gigabit SFP optical ports and 6 10 Gigabit SFP + optical ports |
Forwarding Mode | Store-and-forward switching |
MAC Address Table | 32K |
Switching Capacity | 598Gbps |
Packet Forwarding installments | 252Mpps |
Software Function | |
| Device Maintenance | Support Console, Telnet, SSH Support web, http, https Support FTP, TFTP, Xmodem, SFTP Support SNMP V1/V2c/V3 Support RMON Support NTP |
| Reliability | Support STP/RSTP/MSTP Support EAPS/MEAPS Support MRD-Ring ERPS support Support VRRP Support BFD for OSPF Support BFD for BGP |
| VLANs | Support IEEE 802.1Q (VLAN), 4096 VLAN IDs Support GVRP Support QinQ Support VLAN based on MAC/ protocol /IP subnet / policy / port Support Private VLANs Support 1:1 and N:1 VLAN Mapping functions |
| Port mirroring | Support local and remote port mirroring Support N:4 port mirroring Support flow mirroring Support MAC mirroring |
| Routing | Support Static routing, RIP, OSPF, BGP, MPLS Support IPv4/IPv6ECMP Support VRRP, VRRP v3 Support IPv4/IPv6 Policy-based routing Support IPv4/IPv6 Routing policy Support IPv4/IPv6 dual stack Support IPv6 static routing, RIPng, OSPFv3 |
| QoS | Support Diff-Serv QoS Support 802.1p/DSCP priority mapping Support Queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ Support Priority marking and remarking Support Traffic shaping Support Congestion avoidance, Tail-Drop and WRED Support 802.1p, TOS, DSCP, and EXP priority mapping Support Port/Flow-based Rate Limiting |
| Multicast | Support IGMP v1/v2/v3 Snooping Support IGMPV1/V2/V3 Support MLD Snooping v1/v2 Support MLD v1/v2 |
| ACL | Support IP-based ACL/MAC-based ACL Support based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority Support up to 256 ACLs |
| Link Aggregation | Support IEEE 802.3ad LACP/static link aggregation |
