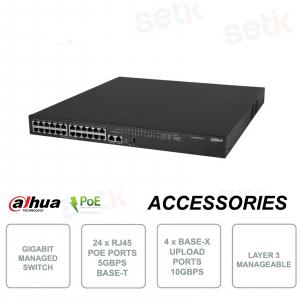

NETWORK SWITCH 24 ETHERNET BASE-T 5GBPS + 4 UPLINK PORTS 10GBPS BASE-X - DAHUA - AS5500-24MGT4XF-600

Product details

- Network switch - Dahua - AS5500-24MGT4XF-600
- Layer 3
- Managed
- 24 PoE Ethernet Ports (100/1000/2500/5000 Mbps Base-T)
- 4 Uplink 1Gbps/10Gbps Base-X ports
- IEEE 802.3x Flow Control
- Switch capacity: 400Gbps
- For rack mounting
- 1x Console Port
- 1xMicro USB port
- Net weight less than 8.7 Kg
- Dimensions: 440mm × 460mm × 43.6mm
- Operating temperature: –5 °C to +45 °C
- Relative Humidity: 5%–95% RH
Data sheet
AS5500-24MGT4XF-600 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ethernet port |
24 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port Speed |
100Mbps;2.5Gbps;1Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Port Speed |
1/10Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Function Slots |
Port 1-24: 24×100/1000/2500/5000 Base-T (UPoE); |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debugging |
1 × Console 1×Micro USB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–5°C to +45°C (+23°F to +113°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures |
–40°C to +70°C (–40°F to +158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption |
min.: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF extension |
83.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity |
400Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate |
240Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Size |
3 Mbits |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN number |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IPv4 Routes |
16k |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
dynamic ARP |
Max.: 16K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spanning Tree Protocol |
STP/RSTP/MSTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Function |
Port-based VLANs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Link Aggregation |
Statc link aggregation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IEEE 802.3x Flow Control |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multicast |
IGMP Snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reliability |
vrp extension |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ARP |
Dynamic ARP Inspection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Routing |
Static routing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP Function |
DHCP Clients |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
HWTACACS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QoS/ACL |
WRR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IPv6 |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Equipment Management |
CLIConfiguration |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Rackmount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
<8.7kg (19.2lbs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
440mm × 460mm × 43.6mm (17.32" × 18.11" × 1.72" ) |
