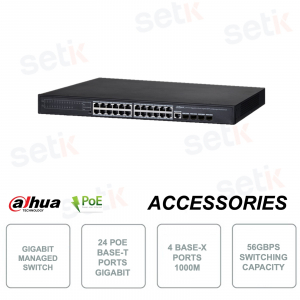

Network Gigabit Switch - Manageable - 24 PoE ports

Network Gigabit Switch - Manageable - 24 PoE ports
-58%

Dahua's PFS4428-24GT-370 is a manageable Layer 2 aggregation switch - Ports: 24x 10/100/1.000 Base-T port + 4x1.000 Base-X - Supports IEEE802.1 - MAC Table Size 8K - Switching Capacity : 56Gbps - Lightning protection 2kV - Data Cache 4M - IEEE802.3af / IEEE802.3at standard support - High quality product.



Reference: PFS4428-24GT-370

Brand: Dahua

EAN: 6939554939143

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MANAGEABLE AGGREGATION SWITCH - LAYER 2 - PORTS : 24 BASE-T + 4 BASE-X - DAHUA - PFS4428-24GT-370

Dahua Technology
Aggregation Switch - Managed - Layer 2 - Dahua - PFS4428-24GT-370
Ports: 24x 10/100/1.000Mbps Base-T port + 4x 1.000Mbps Base-X - Layer 2 - MAC Table Size: 8K - Switching capacity 56Gbps - Lightning protection 2kV - High quality product.

Product details

  • Managed Aggregation Switch - Dahua - PFS4428-24GT-370
  • 24 PoE 10/100/1000M Base-T ports
  • 4 1,000M Base-X ports
  • Switching capacity: 56Gbps
  • MAC Table Size: 8K
  • High lightning protection: 2kV common mode
  • Wide working temperature: 0°C~45°C
  • Dimensions: 440mm x330mm x44mm
  • Item net weight: 4.37kg
  • Power Supply: AC100-240V, 50/60Hz

Data sheet

Technical Specs

model

PFS4428-24GT-370

ethernet port

24*10/100/1000Base-T (PoE power supply)

4*1000Base-X

PoE Power Consumption

Port1-24 ≤30W, Total≤370W

PoE Protocol

IEEE802.3af, IEEE802.3at

Switching Capacity

56Gbps

Packet Forwarding Rate

41.66Mpps

Packet Buffer Memory

4.1Mb

Application Humidity

10%~90%

Power

AC100-240V, 50/60Hz

lightning protection

Common Mode 2KV

Working Temperature

0°C~45°C

Weight

4.37kg

Dimension(W×D×H)

440mm x330mm x44mm

Service Characteristics

System

Username / password: admin/admin123

IP Address :192.168.1.110/24

PoE Budget

Total≤370W

MACTable

8K

SNTP extension

Support

DHCP

Support DHCP client/Relay

Support DHCP snooping

VLANs

802.1Q Standard VLANs

Port Aggregation

Manual aggregation/LACP

Mirroring

Many-to-one port mirroring

Flow Control

Half-duplex based on back pressure type control;

Full duplex based on PAUSE frames

Multicast

IGMP Snooping v2/v3

Security Features

Broadcast / Uncast / Multicast Storm Control, IEEE 802.1x, DHCP Snooping(IP, MAC, Port)

Spanning trees

Support STP/RSTP/MSTP

LLDP

Support

MACTable

Support MAC address table configuration

QoS

Weighted Round Robin (WRR)

Port based QoS

IEEE 802.1p Class of Service

DSCP-based QoS

QoS basic mode

QoS advanced mode (Policy based)

System Maintenance

Support the configuration file upload/download

Support the updated packet upload

System log

Network Management

WEB, Telnet, SSH, SNMP
