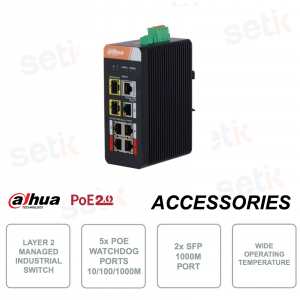

Industrial Network Switch - 5 PoE Watchdog 10/100/1000Mbps Ports + 2 SFP 1000M Ports

Industrial Network Switch - 5 PoE Watchdog 10/100/1000Mbps Ports + 2 SFP 1000M Ports
-57%

The Dahua IS4207-4GT-120 is a 7-port network switch, with 5 RJ45 PoE Watchdog 10/100/1000 Mbps ports + 2 SFP Fiber Ports 1000 Mbps - Ideal for installations in industrial buildings, even in adverse environmental conditions (–40 °C to +75 °C) - Reset button - 1x Console Port for debugging - For desktop or DIN-Rail mounting - protection from lightning 6kV.



Reference: IS4207-4GT-120

Brand: Dahua

EAN: 6923172585967

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MANAGED INDUSTRIAL NETWORK SWITCH - LAYER 2 - 7 TOTAL PORTS - 5 WATCHDOG POE PORTS + 2 SFP PORTS + 1 CONSOLE PORT - DAHUA - IS4207-4GT-120

Dahua Technology
Industrial PoE Watchdog switch - Dahua - IS4207-4GT-120
Layer 2 - manageable - 7 Ports: 5 RJ45 PoE Watchdog 10/100/1000Mbps ports + 2 SFP Fiber Ports 1000Mbps + 1 Console Port - Transmissions up to 250m - Wide operating temperature (–40 °C to +75 °C) - Reset button - 1x Console Port (for debugging) - Red Port 90W - MAC size 8K - Total switching capacity 14Gbps - Packet Buffer Size 4.1Mbit - 6kV lightning protection.

Product details

Switch di rete 2 porte POE + 2 FIBRA - Dahua
  • Watchdog PoE Network Switch - Dahua - IS4207-4GT-120
  • Layer2, managed
  • 7 doors total
  • 5 PoE RJ45 Watchdog 10/100/1000Mbps ports
  • 2 x 1000Mbps optical SFP ports
  • Data transmission up to 250m (10Mbits)
  • All-Gigabit ports Design
  • MAC Table Size 8K
  • Switching capacity 14Gbps
  • Packet Buffer Size 4.1Mbits
  • Reset button
  • 1x Console Port (for debugging)
  • Red Port 90W
  • Supported Standards: IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad
  • Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
  • Power PoE Detail:
    Port 1-2 ≤90W
    Ports 3-4 ≤30W
    Full load ≤120W
  • Lightning protection: Common 6kV - Differential 4kV
  • Wide operating temperature: –40°C to +75°C
  • Ideal for systems inside industrial buildings, even in the presence of adverse environmental conditions
  • Dimensions: 94.4mm × 53.5mm × 135mm
  • Item net weight: 0.65kg
  • For desktop or DIN-Rail installation

  • Fast transmissions at rates of 10 / 100 / 1000 Mbps
  • Supported standards: IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x;IEEE 802.3z
  • PoE Standard: IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE802.3bt
  • 4K MAC addresses
  • Dimensions: 94.4mm × 53.5mm × 135mm

Data sheet

model IS4207-4GT-120
PoE Yes
ethernet port 2
optical port 2
Ethernet Port Speed 10Mbps/100Mbps/1000Mbps
Optical Port Speed 1000Mbps
console port 1
Power Supply Mode 48V–57V DC
Operating Temperature –40°C to +75°C (–40°F to +167°F)
Operating Humidity 10%–90% (RH)
power consumption idling: ? 9W
Full load: 120W
Performance
Layers L2
Managed Yes
Switching Capacity 14Gbps
Packet Forwarding Rate 5.95Mpps
Packet Buffer Size 1.75 Mbits
Communication Standard IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3z
MAC TableSize 4K
PoE
PoE Protocol IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt
PoE Power Ports 1-2: ? 90W Total: ? 120W
PoE Power Consumption Management Power consumption management PoE power on and off Power off when PoE power is overloaded Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Transmission Yes
Jumbo Frames 9,000 bytes
Spanning Tree Protocol STP; RSTP; MSTP; ERP extension
VLAN Function Yes
Flow Control IEEE 802.3X-based flow control (full duplex)
Link Aggregation Static link aggregation; LACP extension
Port mirroring Multiple-to-one port mirroring
Multicast Yes
DHCP Function DHCP clients
DHCP-Server
DHCP Snooping
Security IEEE 802.1x ACL Loop protection
QoS CoS-based QoS 8 output queue for each port Port shaping DSCP-based QoS
Maintenance Uploading/downloading configuration files Online upgrade System logs
Device Management Web (HTTP and HTTP protocol); Telnet; SNMP V1/V2C/V3; CLI
General
Static Protection Air discharge: 8 kV Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV Differential mode: 4 kV
Net Weight 0.60kg (1.3lb)
Gross Weight 0.80kg (1.8lb)
Product Dimensions 94.4mm × 53.5mm × 135mm (3.7” × 2.11”× 5.31") (L × W × H)
Packing Dimensions 254mm × 187mm × 101mm (10.0" × 7.4" × 4.0") (L × W × H)
