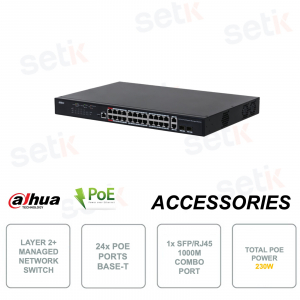

Network Switch - Managed - Layer 2 Plus - 24 POE Ethernet Ports - 2 Gigabit Uplink Combo Ports

Network Switch - Managed - Layer 2 Plus - 24 POE Ethernet Ports - 2 Gigabit Uplink Combo Ports
-58%

Dahua's PFS4226-24GT-230 is a managed Layer 2+ network switch, with 24 PoE ports ( 10/100/1000M Gigabit ) + 2 Combo Gigabit ports for 1000M Uplink - Total PoE power 230W - PoE transmissions up to 250m - 6kV Lightning Protection - Ideal for extending your home or business network.



Reference: PFS4226-24GT-230

Brand: Dahua

EAN: 6923172587077

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MANAGED LAYER 2+ NETWORK SWITCH - 24 POE PORTS 10/100/1000M + 2 SFP COMBO PORTS 1000M - DAHUA - PFS4226-24GT-230

Dahua Technology
Industrial Layer 2+ Managed Switch - PoE - Dahua - PFS4226-24GT-230
24 PoE Ports (10/100/1000Mbps) + 2 SFP Combo Uplink 1000M Ports - Transmissions up to 250m - Lightning Protection 6kV - PoE Total Power 230W max - MAC Table Size 16K - Packet Buffer 12Mbit - Switch capacity equal to 56Gbps - Gigabit on all ports - 1x COnsole Port - reset button - For rack or desktop mounting - Sheet steel.

Product details

  • Industrial PoE network switch - Dahua - PFS4226-24GT-230
  • Layer 2+, manageable
  • 24 PoE 10/100/1000Mbps ports
  • 2 Gigabit Combo SFP ports for uplinks
  • Long distance transmission up to 250m
  • Reset button
  • 1x Console Port
  • MAC Size 16K
  • 4Mbit Packet Buffer
  • Switching capacity up to 56Gbps
  • All Gigabit ports
  • PoE protocols: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
  • PoE Power: Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, Total ≤ 230W
  • Total consumption 270W
  • PoE maximum power: 230W
  • Dimensions: 440mm × 290.7mm × 43.3mm
  • Product net weight: 4Kg
  • Lightning protection 6kV
  • Ideal for desktop or rack mounting
  • Ideal for extending your home or business network
  • In sheet steel

Data sheet

PFS4226-24GT-230

Hardware

Included Power Adapter

Yes

PoE

Yes

ethernet port

24

Ethernet Port Speed

10/100/1000Mbps

Optical Port Speed

1000Mbps

Ethernet Port Uplink Speed

10/100/1000Mbps

Optical Port Uplink Speed

1000Mbps

Description of Function Slots

Port 1-24:24 × 10M/100M/1000MBase-T (PoE)

Port 25-26:2 × 10M/100M/1000MBase-T(uplink)(combo)

Port 25-26:2 × 1000M SFP(uplink)(combo)

Debugging

1 × Console port

Reset Button

1

Power Supply

Built-in power supply:
100–240VAC,50/60Hz, 4A

Operating Temperature

0°C to +45°C (32°F to 131°F)

Operating Humidity

10%–90% (RH)

Storage Temperatures

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–90% (RH), non-condensing

power consumption

270W

Performance

Layers

Layer 2+

ManagementType

Web (http and https protocol); CLI; SNMP V1/V2C/V3

Switching Capacity

56Gbps

Packet Forwarding Rate

41.7Mpps

Packet Buffer Size

12 Mbits

Jumbo Frames

10K

MAC TableSize

16K

VLAN number

4K

VLAN interface

32

IPv4 Routes

16

dynamic ARP

303

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Features

PoE Protocol

IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

PoE Power

Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, Total ≤ 230W

PoE Power Consumption Management

Yes

PoE Pin Assignment

Yes

Long Distance PoE Transmission

Yes

Spanning Tree Protocol

STP; RSTP; mstp extension

VLAN Function

Yes

Link Aggregation

Yes

Multicast

Yes

ARP

Yes

Equipment Management

Yes

General

Static Protection

Air discharge: 8 kV

lightning protection

Common mode: 6kV

Net Weight

4kg (8.82lbs)

Gross Weight

5.0kg (11.02lbs)

Product Dimensions

440mm × 290.7mm × 43.3mm (17.32" × 11.44" × 1.71")

Packaging Dimensions

522mm × 415mm × 75mm (20.55" × 16.34" × 2.95")

Casing material

Electro Galvanized Steel Sheet

Installation

desktop mount; rackmount

Certifications

THERE IS; FCC
