The Dahua IS4204-2GT-120 is a managed Layer 2 network switch - With 4 Ports: 2 PoE RJ45 10/100/1000 Mbps + 2 SFP 1000 Mbps Ports - Supports PoE Watchdog - 1x Console Port - Reset button - Ideal for systems inside industrial buildings even in the presence of adverse environmental conditions (–40 °C to +75 °C) - PoE transmissions up to 250m - Lightning protection 6kV.
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
DAHUA 8X8×
DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH
QUANTITY DISCOUNT AND FREE SHIPPING!
DISCOVER THEM NOW >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
DAHUA 8X8 ×
DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH
QUANTITY DISCOUNT AND FREE SHIPPING!
DISCOVER THEM NOW >>

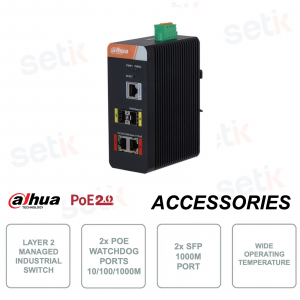

MANAGEABLE LAYER 2 INDUSTRIAL NETWORK SWITCH - 2 POE WATCHDOG 10/100/1000MBPS PORTS + 2 SFP 1000MBPS PORTS + 1 CONSOLE PORT - DAHUA - IS4204-2GT-120

Industrial PoE Watchdog switch - Dahua - IS4204-2GT-120
2 PoE Watchdog 10/100/1000Mbps RJ45 Ports + 2 SFP 1000Mbps Ports + 1 Console Port - PoE transmissions up to 250m - Reset button - 1x Console Port - MAC Size 8K - Packet Buffer 4.1Mbit - Switching capacity: 14Gbps - PoE Standard : IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt - 6kV lightning protection - 1x Console port (for debugging) - Reset button - Ideal for operating in adverse temperature conditions: –40 °C to +75 °C - Red Port 90W - - Power supply 48 V–57 VDC - Maximum consumption 120W.
Product details

- Watchdog PoE Network Switch - Dahua - IS4204-2GT-120
- 2 PoE Watchdog 10/100/1000Mbps Ports + 2 SFP 1000Mbps Ports + 1 Console Port
- PoE data transmission up to 250m
- Power PoE Detail:
Port 1-2 ≤90W
Full load ≤120W - Supported standards: IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad
- PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- IEEE 802.3X-based flow control (full duplex)
- 8K MAC addresses
- Packet Size Buffer 4.1Mbit
- Total switching capacity 14Gbps
- Reset button
- 1x Console Port for debugging
- 6kV lightning protection
- Product net weight:
- Wide operating temperature supported, ideal for use in industrial buildings where environmental conditions are adverse (–40 °C to +75 °C)
- Relative humidity: 5%–95%, non-condensing
- Dimensions: 94.4mm × 53.5mm × 135mm
- Net weight 0.60Kg
Data sheet
IS4204-2GT-120 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Included Power Adapter |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ethernet port |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
optical port |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port Speed |
10/100/1000Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Port Speed |
1000Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Function Slots |
Port 1-2: 2 × RJ-45 10/100/1000Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debugging |
1 × Console port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reset Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
48V–57VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40°C to +75°C (–40°F to +167°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption |
Idling: ≤6W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Layers |
L2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ManagementType |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF extension |
1511896.81 hours |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity |
14Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate |
5.95Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Size |
4.1 Mbits |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jumbo Frames |
10K Bytes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC TableSize |
8K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN number |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN interface |
10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
dynamic ARP |
512 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Protocol |
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power |
Port 1-2 ≤90W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Consumption Management |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Pin Assignment |
1,2,4,5 (V+),3,6,7,8 (V-) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Long Distance PoE Transmission |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spanning Tree Protocol |
STP/RSTP/ERPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Function |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Link Aggregation |
Static link aggregation; LACP extension |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IEEE 802.3x Flow Control |
IEEE 802.3X-based flow control (full duplex) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multicast |
IGMP Snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP Function |
DHCP Clients |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
IEEE 802.1x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Equipment Management |
WEB (http and https) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Static Protection |
Air discharge: 8 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lighting Protection |
Common mode: 6kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.60kg (1.32lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.80kg(1.76lbs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
94.4mm × 53.5mm × 135mm (3.72" × 2.11"× 5.31") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
254mm × 187mm × 101mm (10.00" × 7.36" × 3.97") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
THERE IS; FCC |
