PoE network switch - Layer 2 unmanaged - 4 PoE Base-T ports - 2 SFP ports

PoE network switch - Layer 2 unmanaged - 4 PoE Base-T ports - 2 SFP ports
-57%

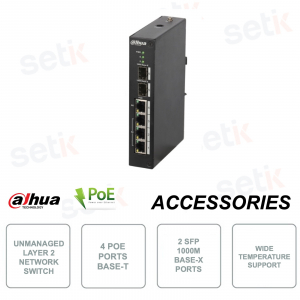

Dahua's PFS3206-4P-120 is an Unmanageable Layer 2 network switch - 4 PoE Ports ( 1x10/100/1000 Base-T Hi-PoE + 3x10/100 Base-T PoE+) and 2 SFP Ports - Fast transmissions up to 1000 Mbps - Ideal inside industrial buildings, even in the presence of extreme environmental conditions - Lightning protection 4kV - Switch capacity 6.8G - MAC Address size 8K - Total power 120W.



Reference: PFS3206-4P-120

Brand: Dahua

EAN: 6939554912771

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

UNMANAGED LAYER 2 NETWORK SWITCH - 4 POE PORTS + 2 SFP PORTS - DAHUA - PFS3206-4P-120

Dahua Technology
PoE industrial switch - Layer 2 Unmanageable - Dahua - PFS3206-4P-1206
4 PoE Ports ( 1x10/100/1000 Base-T Hi-PoE + 3x10/100 Base-T PoE+) and 2 SFP Ports - Switching capacity 6.8G - MAC Address Size 8K - Protection 4kV - Packet Buffer Memory 1Mbit - Net weight 480g - Power supply: DC48~57V - Supports extreme temperatures: -30°C~65°C - Total power up to 120W.

Product details

Switch di rete 4 porte + 2 SFP Dahua
  • PoE industrial network switch - Dahua - PFS3206-4P-120
  • Layer2, unmanageable
  • 4 PoE ports
  • 2 SFP 1000 Mb/s ports
  • PoE ports detail:
    - 2 x 1000 Base-X ports
    - 1 port 10/100/1000 Base-T(Hi-PoE/PoE+/PoE)
    - 3 10/100Base-T (PoE+/PoE) ports
  • MAC auto study and aging, MAC address list capacity 8K
  • 6.8G switching capacity
  • Ideal for use in industrial buildings, with support for extreme temperature environments
  • Operating temperature: -30°C~65°C
  • Dimensions: 150mm×100mm×30mm
  • Total power 120W
  • Power supply: DC48~57V
  • Lightning Protection:
    - Common Mode: 4KV
    - Differential Mode: 2KV
  • Product net weight 480g

Data sheet

Technical Specification

model

PFS3206-4P-120

ethernet port

2*1000Base-X 1*10/100/1000Base-T(Hi-PoE/PoE+/PoE) 3*10/100Base-T (PoE+/PoE)

PoE Power Consumption

Port1, 2, 3 ≤30W Port4≤60W Total≤120W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

6.8G

Packet Forwarding Rate

4.91Mpps

Packet Buffer Memory

1Mb

MAC TableSize

8K

Flow Control

Enable by default

Application Humidity

10%~90%

Power

DC48~57V

lightning protection

Common Mode 4KV Differential Mode 2KV

Working Temperature

-30°C~65°C

Weight

480g

Dimension(W×D×H)

150mm×100mm×30mm

Further details

No additional details available,

Downloads

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
