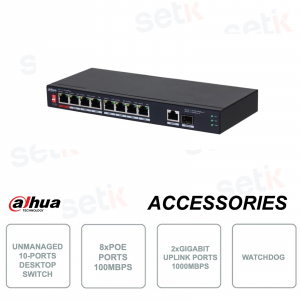

PFS3110-8ET1GT1GF-96 by Dahua, is a 10-port industrial network switch, with 8 PoE (Power Over Ethernet) Ethernet ports + 2 Gigabit ports for Uplink - 100Mbps Ethernet port transmission - Watchdog function - MAC Table Size 8K - Hi- PoE - Includes power supply - Transmission up to 250m - 4kV lightning protection - Metal.



Reference: PFS3110-8ET1GT1GF-96

Brand: Dahua

EAN: 6923172540690

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDUSTRIAL NETWORK SWITCH 8 ETHERNET POE 100MBPS PORTS + 2 GIGABIT 1000MBPS UPLINK PORTS - NOT MANAGEABLE - DAHUA - PFS3110-8ET1GT1GF-96

Dahua Technology
Industrial network switch with 10 ports - Unmanageable - Dahua - PFS3110-8ET1GT1GF-96

10 ports: 8 PoE Ethernet ports: 100Mbps + 2 Gigabit Uplink ports 10/100/1000Mbps - Total switch capacity 5.60 Gbps - Hi-PoE support - Watchdog technology - MAC Table Size 8K - 4kV lightning protection - For installation in desktop - Supports long distance data transmission (max. 250m) - Wide operating temperature range - Metal body - Power supply included.

Product details

Switch di rete industriale 8 porte + Uplink e SFP - Dahua
  • Industrial network switch - Dahua - PFS3110-8ET1GT1GF-96
  • Unmanageable
  • 8 PoE 100M Ethernet ports + 2 Uplink 1000M Gigabit ports
    Port 1-8: 8 × 10/100 Base-T (PoE) / Uplink 1: 1 × 10/100/1000 Base-T / Uplink 2: 1 × 1000 Base-X
  • Supported standards: IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x
  • MAC Table Size 8K
  • Packet Buffer Size 4Mbit
  • Long distance transmission up to 250m
  • Watchdog technology
  • Metal casing
  • Lightning protection 4kV
  • For desktop installation
  • Dimensions: 240mm × 105mm × 28mm
  • Product net weight: 0.65 kg
  • Extended working temperature: –10 °C to +55 °C
  • Relative Humidity: 10%–90% (RH)
  • Dimensions: 150mm×100mm×42mm
  • Power Supply: 53VDC, 1.81A
  • Includes power supply

Data sheet

PFS3110-8ET1GT1GF-96

Hardware

Included Power Adapter

Yes

PoE

Yes

ethernet port

8

Ethernet Port Speed

10/100Mbps

Ethernet Port Uplink Speed

10/100/1000Mbps

Optical Port Uplink Speed

1Gbps

Description of Function Slots

Ports 1-8: 8 × 10/100Base-T (PoE)
Uplink 1: 1×10/100/1000 Base-T
Uplink 2: 1 × 1000 Base-X

Power Supply

53VDC, 1.81A

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%–90% (RH)

Storage Temperatures

–40°C to +70°C (–40°F to +158°F)

Storage Humidity

5%–95% (RH)

power consumption

Idling: 3W
Full load: 96W

Performance

Layers

Unmanaged

ManagementType

No

Smart Managed Switches

No

MTBF extension

105.24 year

Switching Capacity

5.60Gbps

Packet Forwarding Rate

4.17Mpps

Packet Buffer Size

4 Mbits

Jumbo Frames

9K Bytes

MAC TableSize

8K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

PoE

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power

Port 2-8 ≤30W, port 1 ≤90W, total ≤96W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

General

Static Protection

Air discharge: 8kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4kV
Differential mode: 2kV

Net Weight

0.65kg (1.43lb)

Gross Weight

1.4kg (3.09lbs)

Product Dimensions

240mm × 105mm × 28mm (9.45" × 4.13" × 1.10")

Packaging Dimensions

279mm × 239mm × 89mm (10.98" × 9.41" × 3.50")

Casing material

Metal

Installation

Desktop mount

Certifications

THERE IS; FCC

Further details

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
